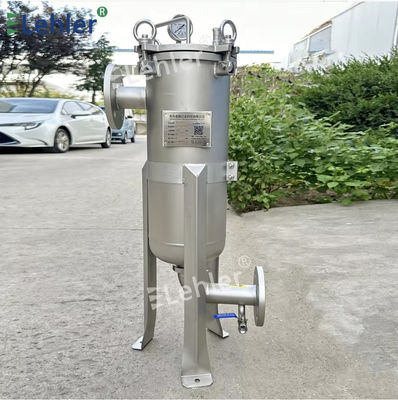

Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil

Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil
Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil
Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil

Large Image :  Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil

Product Details:
Brand Name: Lehler
Contact Now

Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil

Description
Features: High Strength/Corrosion Resistance Special Material: Stainless Steel
Structure: Out Flow Inner Dia: 80 Mm
Flow Rate: Customized Operating Temperature: 0-150℃
Flange Dia: 185 Mm Product: Vertical Strainer
Highlight:

Edible Oil Pre Filtration Oil Filter

,

Stainless Steel Pre Filtration Oil Filter

,

High Efficiency Pre Filtration Oil Filter

Filter bag type stainless steel high efficiency pre filtration oil filter with housing for edible oil
Product Description




Multi Bag Filter
Lehler multi bag filter is suitable for large flow filtration,with quick opeaning design,it is very convenient to disassemble and replace the filter bags.It is suitable for occasions where needs a long time on the filter bag.The heating jacket design can meet high tempreture liquid filtration process.It can maintain or increase the temperature of the fluid,prevent the fluid from solidification,inprove the filtration speed of viscous liquid.


Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil 0




Working principle
The liquid enters from the side or lower inlet of the filter bag.The filter bag is expanded due to the impact of the liquid and the uniform pressure surface.The liquid material is evenly distributed on the inner surface of the whole filter bag.The filtered liquid passing through the filter bag and flow into the pipeline.The particle impurities are intercepted in the filter bag.

Technical Features & Advantages


Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil 1
Simple design structure:easy to disassemble, low operating cost, convenient operation

Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil 2
Quick-opening filter design,easy to operate,saves time and effort


Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil 3
All stainless steel structure:various materials, corrosion and rust prevention



Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil 4
High flow rate,variously materials( PP needle felt/PE needle felt/nylon/polyester)

Productive Process


Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil 5

Specification


Product Model

Equipment Diameter

Equipment Height

Thickness

Filter Area

LFE-MD2

350mm

1000mm

4mm

0.5

LFE-MD3

450mm

1000mm

6mm

0.7

LFE-MD4

550mm

1000mm

6mm

1.0

LFE-MD5

650mm

1000mm

6mm

0.16

LFE-MD12

1000mm

1000mm

6mm

3.0

LFE-MD24

1200mm

1200mm

6mm

6.0

Can Be Customized


Application


Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil 6

Quality Control & Delivery

Quality Control


Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil 7

Product Delivery

Plywood Case for Exporting Package


Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil 8

Exhibition


Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil 9

Certifications


Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil 10

Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil 11

Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil 12

Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil 13

Company Profile


Bag Type Stainless Steel High Efficiency Pre Filtration Oil Filter With Housing For Edible Oil 14

Qingdao Lehler Filtering Technology Co., Ltd. is a national high-tech "The new special expertise" type of enterprise. Lehler has passed the GB/T 19001-2016 quality management system, GB/T 24001-2016 environment management system,GB/T 45001-2020 occupational health management system certification,Eu CE certification.Lehler to perfect production technology research and development, pre-sales and after-sales service system to provide customers with "reduce costs, increase benefits" filtration solutions.
