80 Mesh Replaceable V Wedge Wire Screen Basket 45 Degree

80 Mesh Replaceable V Wedge Wire Screen Basket 45 Degree

    • 80 Mesh Replaceable V Wedge Wire Screen Basket 45 Degree
    • 80 Mesh Replaceable V Wedge Wire Screen Basket 45 Degree
  • 80 Mesh Replaceable V Wedge Wire Screen Basket 45 Degree

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: Lehler
    Certification: ISO9001:2015
    Model Number: VWS-020

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Packaging Details: plywood case
    Delivery Time: 7-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 7 pieces 7 work days
    Contact Now
    Detailed Product Description
    Product: Wedge Wire Screen Basket Slot Opening: 80 Mesh
    Gradient: 45 Degree Application: Basket Strainer
    Diameter: 90mm-500mm Length: 200-1500mm
    High Light:

    V Wedge Wire Screen Basket

    ,

    Replaceable Wedge Wire Screen Basket

    ,

    80 Mesh Wedge Wire Basket

    80 Mesh V Wire Replaceable Screen Basket Filter For Basket Pipiline Strainer



    Wedge Wire is produced through the method of electric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees.

    Wedge Wire is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads.

    The working surface is 100% smooth which eliminates blinding and pegging.

    Lehler wedge wire basket is widely used for Pulp and paper industries.

    Minimum slot: 0.02mm(20um)

    Perfect roundness

    Very smooth wire surface



    2.Specification of Wedge Wire Basket ?

    Profile wire Support Rod
    0.75*1.5mm 2*3mm
    1.0*2.0mm 2*3mm
    2.0*3.0mm 3*5mm
    2.0*4.0mm 3*5mm
    3.0*5.0mm 3*5mm

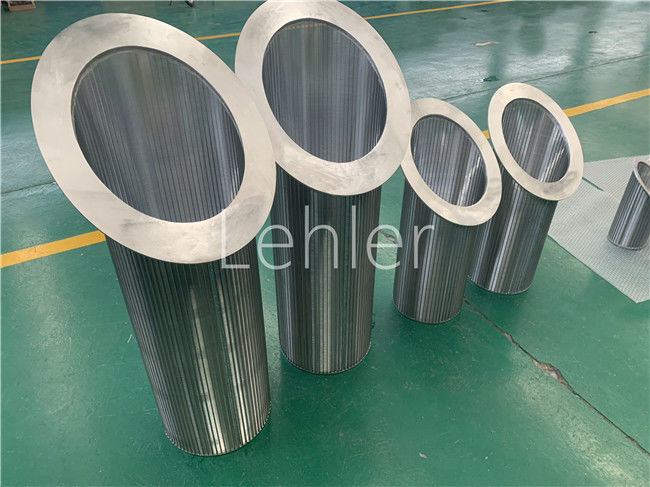

    3.Details pictures of Wedge Wire Basket:



    80 Mesh Replaceable V Wedge Wire Screen Basket 45 Degree 0



    4. Application of Wedge Wire Basket?

    • Starch Industry
    • Sugar Industry
    • Mineral and aggregate processing
    • Pulp and paper
    • Solid-liquid separation
    • Food and beverage

    5. Advantages of Wedge Wire Basket?

    1. Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
    2. Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
    3. Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
    4. High-precision slot opening: Minimum Slot opening is 20 microns.
