Wedge 316L 200 Mesh Sewage Treatment V Wire Screen

Wedge 316L 200 Mesh Sewage Treatment V Wire Screen

    • Wedge 316L 200 Mesh Sewage Treatment V Wire Screen
    • Wedge 316L 200 Mesh Sewage Treatment V Wire Screen
  • Wedge 316L 200 Mesh Sewage Treatment V Wire Screen

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: Lehler
    Certification: ISO9001:2015
    Model Number: WVS-212

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Packaging Details: Plywood Case for Exporting Package
    Delivery Time: 7 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10 pieces 1 work day
    Contact Now
    Detailed Product Description
    Product: Wedge Wire Filter Catridge Rate: 200 Mesh
    MOC: 316L Flow: From Outside To Inside
    Dimension: 30x850mm Application: Sewage Treatment
    High Light:

    Sewage Treatment V Wire Screen

    ,

    200 Mesh V Wire Screen

    ,

    316L Wedge Wire Filter Cartridge





    1. Wire Screen is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads.

    The working surface is 100% smooth which eliminates blinding and pegging.

    Wedge wire screen is produced through the method of electric resistance welding,

    wires with special profiles are welded to supporting wires at 90 degrees.

    The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.

    The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.

    Wedge wire screens are either flow-out-to-in OR flow-in-to-out.



    2.Specification of Wire Screen?

    Profile wire Support rod
    0.76x1.5mm 2.0x3.0mm
    1.5x2.5mm 2.0x3.0mm
    2.0x3.0mm 3.0x5.0mm
    2.0x4.0mm 3.0x5.0mm
    2.5x3.0mm 3.0x5.0mm
    3.0x5.0mm 3.0x5.0mm
    3.0x6.0mm 5.0x8.0mm

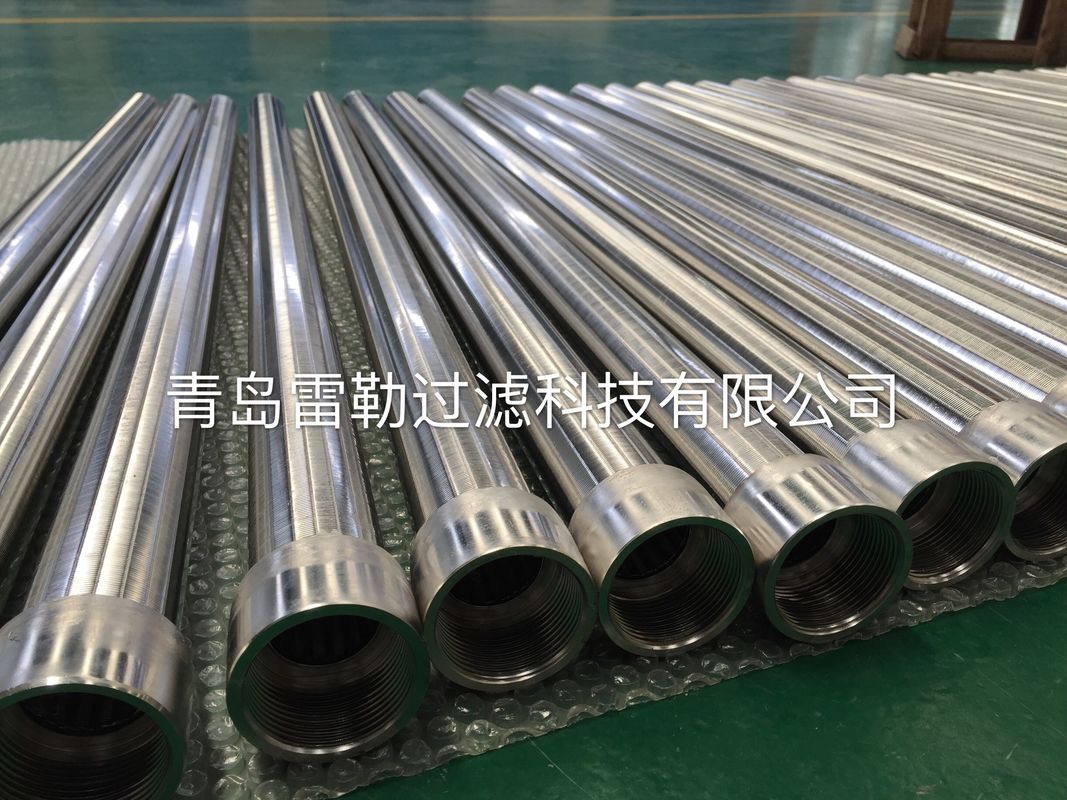

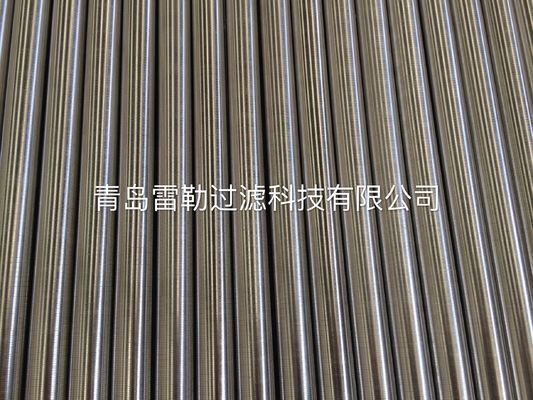

    3.Details pictures of Wedge Wire Screen:

    Wedge 316L 200 Mesh Sewage Treatment V Wire Screen 0

    Wedge 316L 200 Mesh Sewage Treatment V Wire Screen 1

    4. Application of Wire Screen?

     Wire Screen is widely serviced for many industries for filtration and separation stage.

    • environmental protection

    • food & light industries

    • pharmaceutical

    • water treatment

    • pulp & paper

    • paint & inks

    • petroleum

    • chemical

    5. Advantages of Wire Screen?

    • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
    • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
    • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
    • High-precision slot opening: Minimum Slot opening is 20 microns.
