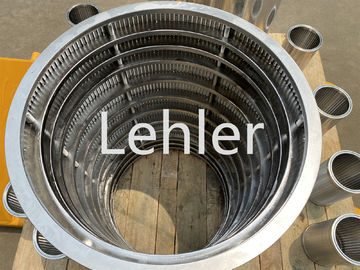

Circular 100 Micron Vertical Wedge Wire Cylinder Basket

Circular 100 Micron Vertical Wedge Wire Cylinder Basket
Circular 100 Micron Vertical Wedge Wire Cylinder Basket Circular 100 Micron Vertical Wedge Wire Cylinder Basket

Large Image :  Circular 100 Micron Vertical Wedge Wire Cylinder Basket

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: VVB-KC21
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 7 pieces 7 work days

Circular 100 Micron Vertical Wedge Wire Cylinder Basket

Description
Product: Wedge Wire Basket Support Rod: Vertical
Slot Opening: 100 Micron Profile Wire: Circular
Stainless Steel: 316L Application: Kaolin
High Light:

Wedge Wire Cylinder Basket

,

Vertical Wire Cylinder Basket

,

100 Micron Wire Cylinder Basket





1. Wedge Wire is produced through the method of electric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees.

Wedge Wire is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads.

The working surface is 100% smooth which eliminates blinding and pegging.

Lehler wedge wire basket is widely used for Pulp and paper industries.

Minimum slot: 0.02mm(20um)

Perfect roundness

Very smooth wire surface



2.Specification of Wedge Wire Basket ?

Profile wire Support Rod
0.75*1.5mm 2*3mm
1.0*2.0mm 2*3mm
2.0*3.0mm 3*5mm
2.0*4.0mm 3*5mm
3.0*5.0mm 3*5mm

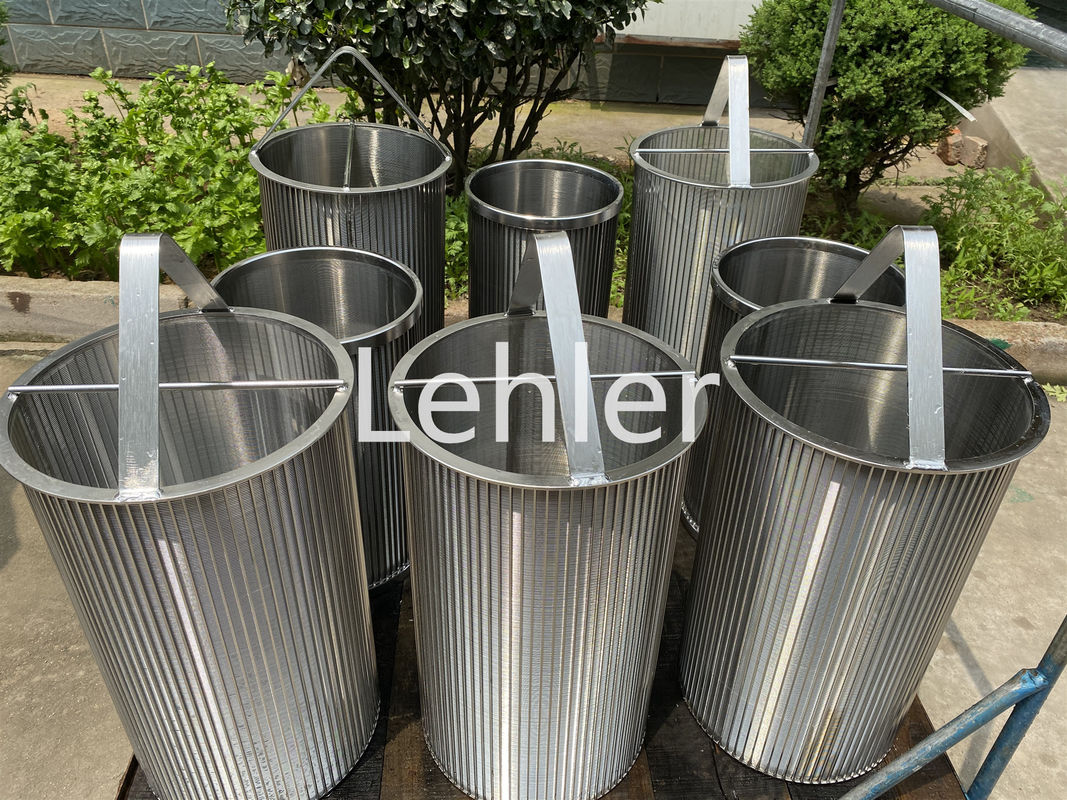

3.Details pictures of Wedge Wire Basket:

Circular 100 Micron Vertical Wedge Wire Cylinder Basket 0

4. Application of Wedge Wire Basket?

  • Starch Industry
  • Sugar Industry
  • Mineral and aggregate processing
  • Pulp and paper
  • Solid-liquid separation
  • Food and beverage

5. Advantages of Wedge Wire Basket?

  1. Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  2. Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  3. Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  4. High-precision slot opening: Minimum Slot opening is 20 microns.
