Straight Automatic Self Cleaning Filters 600 Polished Surface For Milk Industry

Straight Automatic Self Cleaning Filters 600 Polished Surface For Milk Industry

    • Straight Automatic Self Cleaning Filters 600 Polished Surface For Milk Industry
    • Straight Automatic Self Cleaning Filters 600 Polished Surface For Milk Industry
  • Straight Automatic Self Cleaning Filters 600 Polished Surface For Milk Industry

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: Lehler
    Certification: ISO9001:2015
    Model Number: INF-003

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Packaging Details: Plywood Case for Exporting Package
    Delivery Time: 7-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2 pieces 7 work days
    Contact Now
    Detailed Product Description
    Product: Pipeline Straight Filter Filter Element: Wedge Wire Screen
    Slot Opening: 125 Microns Inlet And Outlet: DN40
    Application: Milk Filtration Surface: 600 Polished
    High Light:

    automatic self cleaning strainer

    ,

    self cleaning screen filter



    600 Polished Surface Straight Automatic Self Cleaning Filters Milk Industries Application



    1. What is INOXPA Straight Filter?

    Inoxpa straight filter structure is simple, which is consists of a filter hosing and a filter element.

    The filter hosing is with inlet and outlet for media flow.

    Straight filter inlet and outlet are in the same direction.

    The filter element keep all the particles which size is equal and larger than the element opening slot.



    2. Specification of INOXPA Straight Filter Element?



    Mesh Micron Opening Area
    40 0.38 27.54%
    60 0.25 20.00%
    80 0.18 15.25%
    165 0.095 8.68%
    325 0.045 4.31%

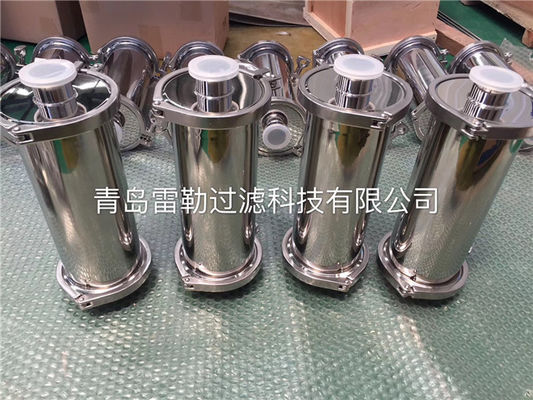

    3. Details pictures of INOXPA Straight Filter:

    Straight Automatic Self Cleaning Filters 600 Polished Surface For Milk Industry 0

    4. Application of INOXPA Straight Filter?

    • Pharmaceutical industry
    • Chemical industry
    • Food processing
    • Cosmetic

    5. Advantages of INOXPA Straight Filter?

    • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
    • Strong struction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
    • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
    • High-precision slot opening: Minimum Slot opening is 20 microns.
    • Large slot opening: large flow rate.
