500 Micron Slot Conical Wedge Wire Filter Elements Stainless Steel 316L

500 Micron Slot Conical Wedge Wire Filter Elements Stainless Steel 316L
500 Micron Slot Conical Wedge Wire Filter Elements Stainless Steel 316L 500 Micron Slot Conical Wedge Wire Filter Elements Stainless Steel 316L

Large Image :  500 Micron Slot Conical Wedge Wire Filter Elements Stainless Steel 316L

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: Conical Wedge wire Backwash Filter Element
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 pieces 7 work days

500 Micron Slot Conical Wedge Wire Filter Elements Stainless Steel 316L

Description
Product Name: Conical Wedge Wire Backwash Filter Element Application: Hydac AutoFilt Series Filters
Slot: 500 Micron Flow Direction: From Inside To Outside
Slot Opening: 0.05mm Upper Dia: 41mm
High Light:

hydraulic filter element

,

trislot wedge wire

Stainless Steel 316L Conical Wedge wire Backwash Filter Element



1. What is Conical wedgewire elements?

Lehler Wedge Wire Elements is used for automatic self-cleaning filters.

The filter element slot opening is a long slit type, which is increase the opening area and flow rate.
Filtration precision range is 20 to 1500 micron.
The scraper is scraped in the direction of the gap and is suitable for conventional filtration requirements.

The filtration surface is very smooth and flat, which reduce the abrasion of filter scraper blade.



2. Specification of Conical wedgewire elements?



Name

wedgewire elements for Hydac AutoFilt RF3 / RF4 / RF5 / RF7 / RF10

Structure Reverse Formed
Type From inside to outside

Profile wire

1.0x2.0 mm
Support Rod 2.0x3.0 mm

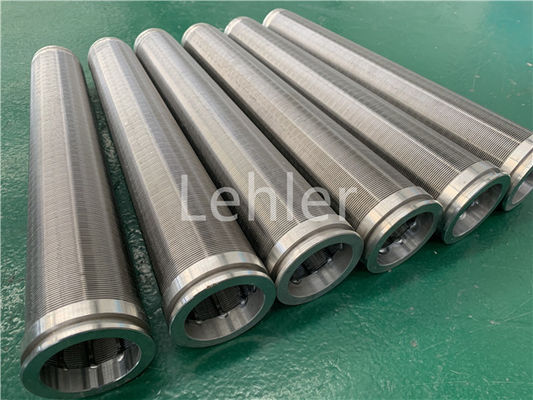

3. Details pictures of Conical wedgewire elements:

500 Micron Slot Conical Wedge Wire Filter Elements Stainless Steel 316L 0

500 Micron Slot Conical Wedge Wire Filter Elements Stainless Steel 316L 1

500 Micron Slot Conical Wedge Wire Filter Elements Stainless Steel 316L 2

4. Application of Conical wedgewire elements?

  • Mineral and aggregate processing
  • Adhesive/sealant filtration
  • Waste water treatment
  • Solid-liquid separation
  • Food and beverage
  • Plastics extrusion
  • Pulp and paper
  • Petrochemical
  • Automotive
  • Chemical
  • Coatings

5. Advantages of Conical wedgewire elements?

  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong struction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • High-precision slot opening: Minimum Slot opening is 20 microns.
  • Large slot opening: large flow rate.
