Fine Chemical Filtration Wedge Wire Filter Elements Automatic Self Cleaning

Fine Chemical Filtration Wedge Wire Filter Elements Automatic Self Cleaning

    • Fine Chemical Filtration Wedge Wire Filter Elements Automatic Self Cleaning
    • Fine Chemical Filtration Wedge Wire Filter Elements Automatic Self Cleaning
    • Fine Chemical Filtration Wedge Wire Filter Elements Automatic Self Cleaning
  • Fine Chemical Filtration Wedge Wire Filter Elements Automatic Self Cleaning

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: Lehler
    Certification: ISO9001:2015
    Model Number: WWE-200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Packaging Details: Plywood Case for Exporting Package
    Delivery Time: 7-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10 pieces 7 work days
    Contact Now
    Detailed Product Description
    Name: Wedge Wire Element Dimension: 200X600
    Material: SS316L Slot: 125micron
    Structure: From Inside To Outside Application: Automatic Self-cleaning Filter
    High Light:

    hydraulic filter element

    ,

    trislot wedge wire

    Fine Chemical Filtration Wedge Wire Filter Elements, Automatic Self-cleaning Filter Element.



    1. What is Wedge Wire Elements?

    Lehler Wedge Wire Elements is used for automatic self-cleaning filters.

    The filter element slot opening is a long slit type, which is increase the opening area and flow rate.
    Filtration precision range is 20 to 1500 micron.
    The scraper is scraped in the direction of the gap and is suitable for conventional filtration requirements. The filtration surface is very smooth and flat, which reduce the abrasion of filter scraper blade.



    2.Specification of Lehler Wedge Wire Elements?

    Profile wire Support Rod
    0.75*1.5mm 2*3mm
    1.0*2.0mm 2*3mm
    2.0*3.0mm 3*5mm
    2.0*4.0mm 3*5mm
    3.0*5.0mm 3*5mm

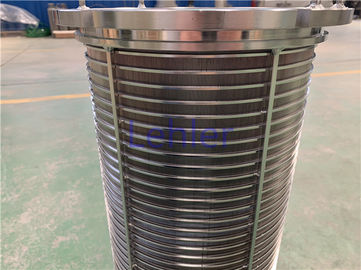

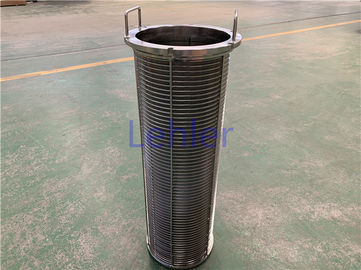

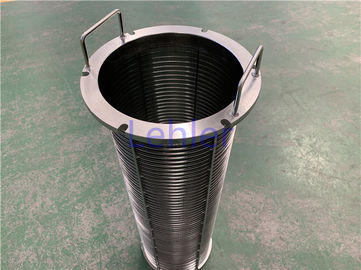

    3.Details pictures of Lehler Wedge Wire Elements:

    Fine Chemical Filtration Wedge Wire Filter Elements Automatic Self Cleaning 0

    Fine Chemical Filtration Wedge Wire Filter Elements Automatic Self Cleaning 1

    Fine Chemical Filtration Wedge Wire Filter Elements Automatic Self Cleaning 2

    4. Application of Wedge Wire Elements?

    • Mineral and aggregate processing
    • Adhesive/sealant filtration
    • Waste water treatment
    • Solid-liquid separation
    • Food and beverage
    • Plastics extrusion
    • Pulp and paper
    • Petrochemical
    • Automotive
    • Chemical
    • Coatings

    5. Advantages of Wedge Wire Elements?

    • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
    • Strong struction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
    • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
    • High-precision slot opening: Minimum Slot opening is 20 microns.
    • Large slot opening: large flow rate.
