Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element

Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element

    • Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element
    • Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element
    • Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element
  • Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: Lehler
    Certification: ISO9001:2015
    Model Number: WVS-500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Packaging Details: Plywood Case for Exporting Package
    Delivery Time: 7 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10 pieces 1 work day
    Contact Now
    Detailed Product Description
    Name: Johnson Vee Wire Screen Application: Self Cleaning Filter Element
    MOC: SUS316L Slot: 20 Micron
    Structure: From Inside To Outside Diameter: 410mm
    High Light:

    metal wire screen

    ,

    wedge wire sieve filters

    Diameter 410 mm Johnson Vee Wire Screen applied for self cleaning filter​ element



    1. Johnson Vee Wire Screen is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads.

    The working surface is 100% smooth which eliminates blinding and pegging.

    Johnson Vee Wire Screen is produced through the method of electric resistance welding,

    wires with special profiles are welded to supporting wires at 90 degrees.

    The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.

    The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.

    Wedge wire screens are either flow-out-to-in OR flow-in-to-out.



    2.Specification of Johnson Vee Wire Screen?

    Profile wire Support rod
    0.76x1.5mm 2.0x3.0mm
    1.5x2.5mm 2.0x3.0mm
    2.0x3.0mm 3.0x5.0mm
    2.0x4.0mm 3.0x5.0mm
    2.5x3.0mm 3.0x5.0mm
    3.0x5.0mm 3.0x5.0mm
    3.0x6.0mm 5.0x8.0mm

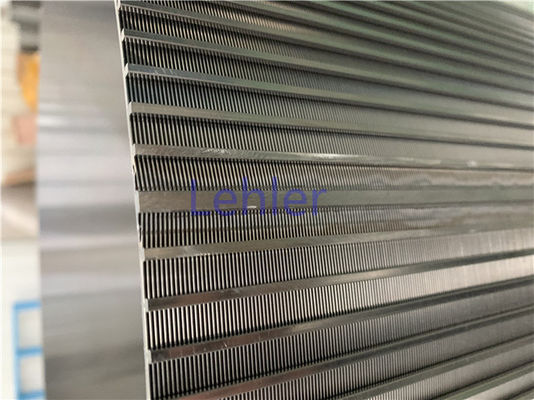

    3.Details pictures of Johnson Vee Wire Screen:

    Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element 0

    Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element 1Diameter 410 Mm Wedge Wire Screens For Self Cleaning Filter Element 2

    4. Application of Johnson Vee Wire Screen?

    Johnson Vee Wire Screen is widely serviced for many industries for filtration and separation stage.

    • environmental protection

    • food & light industries

    • pharmaceutical

    • water treatment

    • pulp & paper

    • paint & inks

    • petroleum

    • chemical

    5. Advantages of Johnson Vee Wire Screen?

    • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
    • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
    • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
    • High-precision slot opening: Minimum Slot opening is 20 microns.
