Slot Tube V Wire Screen Outside To Inside Type Perfect Roundness High Performance

Slot Tube V Wire Screen Outside To Inside Type Perfect Roundness High Performance

    • Slot Tube V Wire Screen Outside To Inside Type Perfect Roundness High Performance
    • Slot Tube V Wire Screen Outside To Inside Type Perfect Roundness High Performance
  • Slot Tube V Wire Screen Outside To Inside Type Perfect Roundness High Performance

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: Lehler
    Certification: ISO9001:2015
    Model Number: WWS-110

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Packaging Details: Plywood Case for Exporting Package
    Delivery Time: 7 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10 pieces 7 work days
    Contact Now
    Detailed Product Description
    Name: Wedge Wire Slot Tube Structure: From Outside To Inside
    Application: Sea Water Filtration Profile Wire: Circular
    Support Rod: Vertical Type: Slot Tube
    High Light:

    wedge wire grate

    ,

    metal wire screen

    Slot Tube / Wedge Wire Screen / Wire Screen



    1. What is wedge wire screen?

    Wedge Wire is produced through the method of electric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees.



    Wedge Wire is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads. The working surface is 100% smooth which eliminates blinding and pegging.



    The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.Wedge wire screens are either flow-out-to-in OR flow-in-to-out.



    2.Specification of Lehler wedge wire screen?

    • Minimum slot: 0.02mm(20um)
    • Mimimum diameter: 16mm
    • Maxmum Length: 6000mm
    • Perfect roundness
    • Very smooth wire surface
    Profile wire Support Rod
    0.75*1.5mm 2*3mm
    1.0*2.0mm 2*3mm
    2.0*3.0mm 3*5mm
    2.0*4.0mm 3*5mm
    3.0*5.0mm 3*5mm

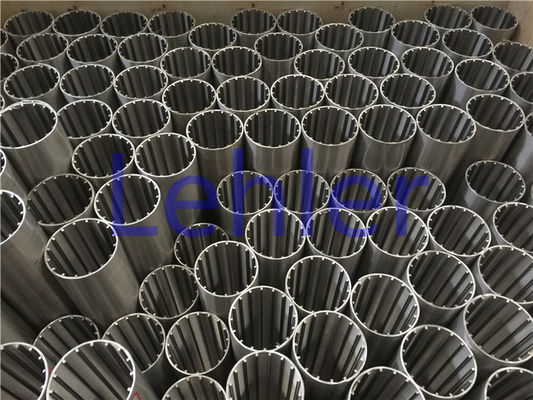

    3.Details pictures of Lehler wedge wire screen

    Slot Tube V Wire Screen Outside To Inside Type Perfect Roundness High Performance 0Slot Tube V Wire Screen Outside To Inside Type Perfect Roundness High Performance 1

    4. Application of wedge wire screen?

    • Waste water treatment
    • Petrochemical
    • Coatings
    • Mineral and aggregate processing
    • Pulp and paper
    • Chemical
    • Solid-liquid separation
    • Food and beverage

    5. Advantages of wedge wire screen?

    1. Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
    2. Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
    3. Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
    4. High-precision slot opening: Minimum Slot opening is 20 microns.
