High Efficient Self Cleaning Screen Filter Simple Structure New Design

High Efficient Self Cleaning Screen Filter Simple Structure New Design
High Efficient Self Cleaning Screen Filter Simple Structure New Design High Efficient Self Cleaning Screen Filter Simple Structure New Design High Efficient Self Cleaning Screen Filter Simple Structure New Design

Large Image :  High Efficient Self Cleaning Screen Filter Simple Structure New Design

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: LFW-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 set 10 work days

High Efficient Self Cleaning Screen Filter Simple Structure New Design

Description
Name: External Scraper Self Cleaning Filter Housing Material: SS304
Element Material: SS316L Element: Wedge Wire Element
Slot: 0.075mm Motor: SEW
High Light:

automatic self cleaning strainer

,

self flushing water filter

High Efficient Automatic External Scraper Self Cleaning Filter with Simple Structure and New Design



1. Automatic External Scraper Self Cleaning Filter Introduction:

Lehler automatic self-cleaning filter automatically removes particles from the filter elements surface by the efficiently mechanical scraper,

which can work on-line continuously. This filter requires no manual cleaning frequently.

Traditional filters often block up viscous materials and soft impurities.

Customers can only choose large filters or frequent manual cleaning.

Lehler filter with self cleaning operation device, which always maintain regular filter element cleaning and discharging waste liquid with high concentration of impurities.



2. Automatic External Scraper Self Cleaning Filter Spec.

LFW SERIES D273 D325 D377 DN400 D450
Diameter (mm) Φ203 Φ230 Φ250 Φ325 Φ380
Inlet Dia. DN50 DN50 DN50 DN80 DN100
Filtration flow (water) T/H 20-50 30-60 30-80 50-100 70-150
Outlet Dia. DN40 DN40 DN40 DN50 DN80
Slot Opening >20UM
Operation Control

Continuous operation, intermittent operation, time control automatic discharge,

pressure differential control automatic sewage, manual discharge.

Scraper material PTFE / High elastic metal/ carbon fiber
Sealing material NBR /VITON(FKM)
Customerized

Sanitary design, jacket design, high temperature resistant design and explosion

proof control design

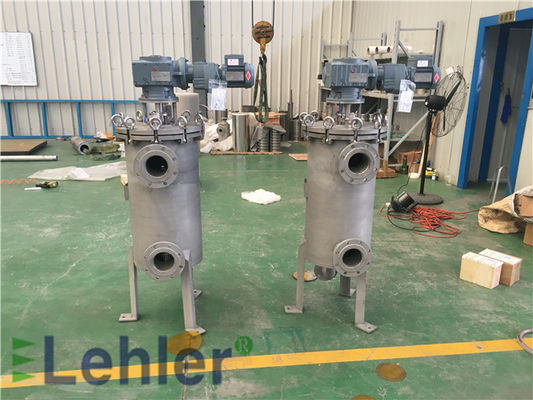

3. Automatic External Scraper Self Cleaning Filter Pictures:

High Efficient Self Cleaning Screen Filter Simple Structure New Design 0

High Efficient Self Cleaning Screen Filter Simple Structure New Design 1

High Efficient Self Cleaning Screen Filter Simple Structure New Design 2

4. Applicable Liquids:

Wax, kerosene, monomer, polymer, citric acid, fermentation liquid, chitosan,

agarose (gel), silicon resin solution, soap, sorbitol, steroids, corn syrup, adhesives, paints,

wet end additives, lubricants, resin, rubber, ethanol, mixed oil, edible oil and fruit juice, diesel oil etc.



5. Application Industries:

  • Coatings
  • Chemical
  • Automotive
  • Petrochemical
  • Pulp and paper
  • Plastics extrusion
  • Food and beverage
  • Solid-liquid separation
  • Waste water treatment
  • Adhesive/sealant filtration
  • Mineral and aggregate processing
