Chemical Industry Stainless Steel Screen 150 Micron Slot For Separation

Chemical Industry Stainless Steel Screen 150 Micron Slot For Separation

  • Chemical Industry Stainless Steel Screen 150 Micron Slot For Separation
Chemical Industry Stainless Steel Screen 150 Micron Slot For Separation
Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: wws-155
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 pieces 7 work days
Contact Now
Detailed Product Description
Name: Wedge Wire Screens Slot: 150micron
Profile Wire: 1x2mm Support Rod: 2x3mm
Material: SS304 Application: Chemical Industrial
High Light:

wedge wire mesh

,

wedge wire filter

Stainless Steel Wedge Wire Screen For Separation, Screen for Chemical industrial



1.  Stainless Steel Wedge Wire Screen:

Wedge Wire is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads. The working surface is 100% smooth which eliminates blinding and pegging.

Wedge Wire is produced through the method of electric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees.

The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.Wedge wire screens are either flow-out-to-in OR flow-in-to-out.



2.Specification of Stainless Steel Wedge Wire Screen?

  • Minimum slot: 0.02mm(20um)
  • Mimimum diameter: 16mm
  • Maxmum Length: 6000mm
  • Perfect roundness
  • Very smooth wire surface
Profile wire Support Rod
0.75*1.5mm 2*3mm
1.0*2.0mm 2*3mm
2.0*3.0mm 3*5mm
2.0*4.0mm 3*5mm
3.0*5.0mm 3*5mm

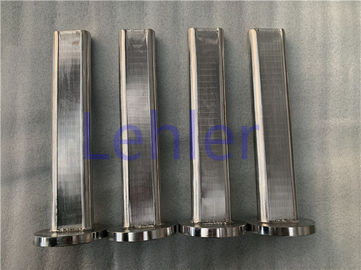

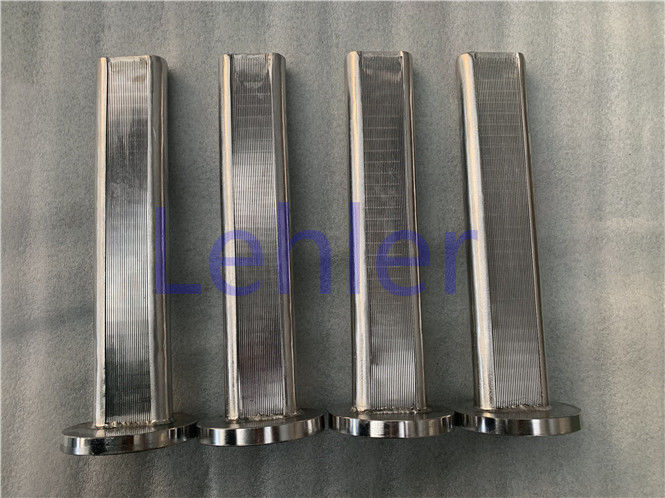

3.Details pictures of Stainless Steel Wedge Wire Screen:

Chemical Industry Stainless Steel Screen 150 Micron Slot For Separation 0

Chemical Industry Stainless Steel Screen 150 Micron Slot For Separation 1

4. Application of Stainless Steel Wedge Wire Screen?

  • Waste water treatment
  • Petrochemical
  • Coatings
  • Mineral and aggregate processing
  • Pulp and paper
  • Chemical
  • Solid-liquid separation
  • Food and beverage

5. Advantages of Stainless Steel Wedge Wire Screen?

  1. Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  2. Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  3. Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  4. High-precision slot opening: Minimum Slot opening is 20 microns.
