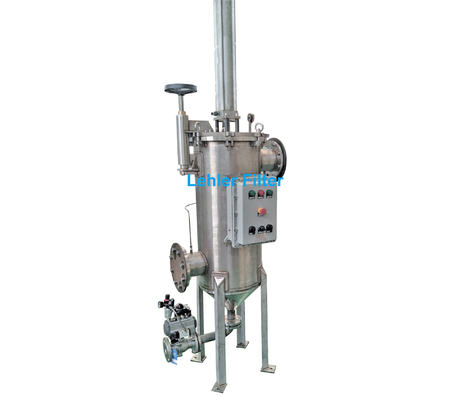

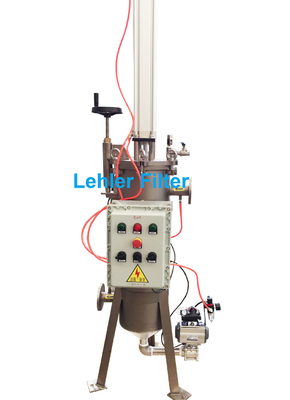

Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration

Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration
Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration
Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration

Large Image :  Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration

Product Details:
Place of Origin: QINGDAO
Brand Name: Lehler
Model Number: LFA-D219
Payment & Shipping Terms:
Packaging Details: polywood
Delivery Time: 35
Contact Now

Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration

Description
Brush: Metal Brush Service: OEM
Power Box: EX-proof Element: Wedge Wire Element
Slot Opening: 150 Microns Inlet/Outlet Connection: Flanged/Threaded
New Application: Sizing For Paper Mill Surface Finish: Mirror Polish
Highlight:

Pushing Automatic Self Cleaning Filters

,

Industrial Filtration Automatic Self Cleaning Filters

,

Customizable automatic self cleaning filters

Product Description




Customizable Automatic Pneumatic Air Cylinder Pushing Self Cleaning Filters for Industrial Filtration Requirements

Lehler pneumatic scraping self-cleaning filter (LFA series filter) blends modern technology with simplicity to provide a versatile method of filtering your process fluids.

Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration 0




Working principle
Liquid enters the filter body from inlet and flows through the filter element from inside to outside.Impurity is collected on the internal surface of the wedge wire element.The aircylinder drives scraper blade up and down to remove the impurity continously.Cleaning takes place without interruption to flow by the rotation of the element against fixed scraper blades.The impurity accumulated during rotation is deposited into the bottom on the filter body from where it can be periodically discharged automatically via the drain outlet.

Technical Features &Advantages


Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration 1
No disposable consumables:Save filter media cost and environment cost

Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration 2
Stainless steel structure:Variously materials, corrosion and rust prevention.


Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration 3
High-precision slot opening: Min. Slot 20 microns.

Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration 4
High automation degree:Which can work on-line continuously,no manual cleaning frequently.

Productive Process


Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration 5


Specification

Product Model

Equipment Diameter

Equipment Height

Thickness

Filter Area

Slot

LFA-D219

250mm

1000mm

3mm

0.3



Min. 0.02mm(20um)



LFA-D273

300mm

1450mm

4mm

0.5

LFA-D450

500mm

1600mm

6mm

0.9


Application


Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration 6

Exhibition


Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration 7

Quality Control & Delivery


Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration 8

Plywood Case for Exporting Package


Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration 9

Certifications


Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration 10

Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration 11

Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration 12

Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration 13

Company Profile


Customizable Pneumatic Air Cylinder Pushing Automatic Self Cleaning Filters For Industrial Filtration 14

Qingdao Lehler Filtering Technology Co., Ltd. is a national high-tech "The new special expertise" type of enterprise. Lehler has passed the GB/T 19001-2016 quality management system, GB/T 24001-2016 environment management system,GB/T 45001-2020 occupational health management system certification,Eu CE certification.Lehler to perfect production technology research and development, pre-sales and after-sales service system to provide customers with "reduce costs, increase benefits" filtration solutions.
