Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia

Large Image : Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia

Product Details:

Brand Name:	Lehler

Contact Now

Stainless Steel Vertical Strainer Out Flow Resin Filter With 80mm Inner Dia

Description

Features:	High Strength/Corrosion Resistance	Special Material:	Stainless Steel
Structure:	Out Flow	Inner Dia:	80 Mm
Flow Rate:	Customized	Operating Temperature:	0-150℃
Flange Dia:	185 Mm	Product:	Vertical Strainer
Highlight:	80mm Resin Filter , Stainless Steel Resin Filter , Vertical Strainer Resin Filter

Industrial Cartridge Filter Housing Vertical Internal Scraping Self-cleaning resin trap filter

Product Description

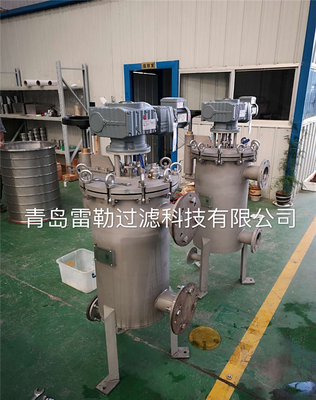

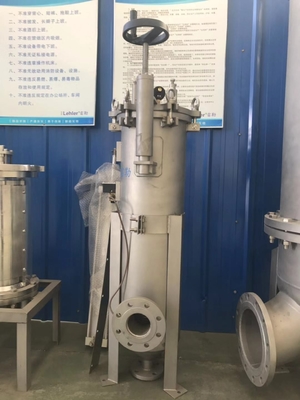

Lehler internal scraping self-cleaning filter (LFN series filter) blends modern technology with simplicity to provide a versatile method of filtering your provide a versatile method of filtering your process fluids.The filter can be set up for automated or manual operation.

Working principle

Liquid enters the filter body from inlet and flows through the filter element from inside to outside.Impurity is collected on the internal surface of the wedge wire element.The reducer motor drives scraper blade to remove the impurity continuously.Cleaning takes place without interruption to flow by the rotation of the element against fixed scraper blades.The impurity accumulated during rotation is deposited into the bottom on the filter body from where it can be periodically discharged automatically via the drain outlet.

Technical Features &Advantages

No disposable consumables:Save filter media cost and environment cost

Stainless steel structure:Variously materials, corrosion and rust prevention

High-precision slot opening: Min. Slot 20 microns

High automation degree:Which can work on-line continuously,no manual cleaning frequently

Productive Process

Specification
Product Model	Equipment Diameter	Equipment Height	Thickness	Filter Area	Slot
LFN-D159	200mm	500mm	3mm	0.1	Min. 0.02mm(20um)
LFN-D219	250mm	1000mm	3mm	0.2
LFN-D273	300mm	1450mm	4mm	0.5
LFN-D325	350mm	1600mm	4mm	0.6
LFN-D400	450mm	1700mm	6mm	0.7
LFN-D450	500mm	1750mm	6mm	0.9
LFN-D550	600mm	1850mm	6mm	2.0
LFN-D800	850mm	2000mm	6mm	2.5

Application

Quality Control & Delivery

Plywood Case for Exporting Package

Exhibition

Certifications

Company Profile

Qingdao Lehler Filtering Technology Co., Ltd. is a national high-tech "The new special expertise" type of enterprise. Lehler has passed the GB/T 19001-2016 quality management system, GB/T 24001-2016 environment management system,GB/T 45001-2020 occupational health management system certification,Eu CE certification.Lehler to perfect production technology research and development, pre-sales and after-sales service system to provide customers with "reduce costs, increase benefits" filtration solutions.
