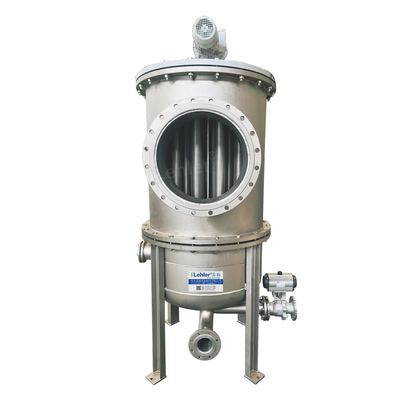

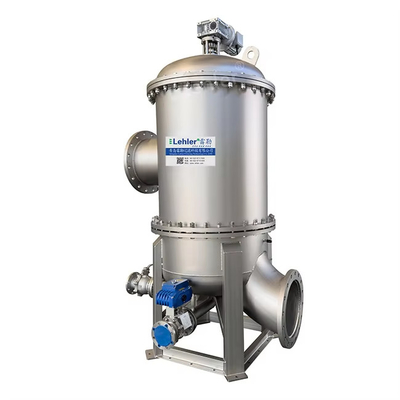

EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification

EX-proof Self-cleaning Automatic Back washing Filters for chemical industry oil beverage liquid purification Products Description Automatic Back Flushing Filter Lehler automatic back flushing filter (LFF series filter) blends modern technology with simplicity to provide a versatile method of filtering your provide a versatile method of filtering your process fluids.The filter can be set up for fully or semi-automated or manual operation. Working principle Automatic back

Brand Name: Lehler
Model Number: LFF-D1200
Product Details
Highlight:

EX-proof Automatic Self Cleaning Filters

,

Chemical Industry Automatic Self Cleaning Filters

,

Liquid Purification Automatic Self Cleaning Filters
Inlet/Outlet Connection: Flanged/Threaded
Power Box: EX-proof
Slot Opening: 150 Microns
Installation Type: Vertical/Horizontal
Brush: Metal Brush
Inlet Size: 1 1/2
Gasket: FPM
Inlet: DN150
Product Description
Detailed Specifications & Features
EX-proof Self-cleaning Automatic Back washing Filters for chemical industry oil beverage liquid purification
Products Description

Automatic Back Flushing Filter
Lehler automatic back flushing filter (LFF series filter) blends modern technology with simplicity to provide a versatile method of filtering your provide a versatile method of filtering your process fluids.The filter can be set up for fully or semi-automated or manual operation.


EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification 0

Working principle
Automatic back flushing filter has many filter elements inside,which can be used for high flow rate and high impurity liquid filtertion process.It can remove solid partical from water or low viscosity liquid.
The special back flushing arm design can clean the filter element one by one avoid clogging.It increase the equipment running efficiency and extend the use life.


EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification 1

Technical Features &Advantages

High Flow Rate & High Impurity Liquid Filtration Process


EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification 2

--No disposable consumables:
Save filter media cost and environment cost

--High-precision slot opening:
Min. Slot 20 microns

--High automation degree:
Which can work on-line continuously,no manual cleaning frequently




Productive Process


EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification 3

Specification


Model

Equipment Diameter

Equipment Height

Thickness

Filter Area

Slot

LFF-D400

450mm

1500mm

6mm

0.8




Min. 0.02mm(20um)

LFF-D450

500mm

2000mm

6mm

0.9

LFF-D550

600mm

2500mm

6mm

1.0

LFF-D800

850mm

3000mm

6mm

2.0

LFF-D900

950mm

3500mm

6mm

2.5

LFF-D1200

1700mm

4000mm

6mm

3.0


Application


EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification 4


EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification 5

Quality Control & Delivery


EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification 6


EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification 7

Company Profile


EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification 8

Qingdao Lehler Filtering Technology Co., Ltd. is a national high-tech "The new special expertise" type of enterprise. Lehler has passed the GB/T 19001-2016 quality management system, GB/T 24001-2016 environment management system,GB/T 45001-2020 occupational health management system certification,Eu CE certification. Lehler to perfect production technology research and development, pre-sales and after-sales service system to provide customers with "reduce costs, increase benefits" filtration solutions.





EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification 9

EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification 10

EX Proof Self Cleaning Automatic Back Washing Filters For Chemical Industry Oil Beverage Liquid Purification 11

FAQ

1.Q: How can I choose the most suitable filter equipment? ?
A: Please tell me the working condition include: filtration liquid, general viscosity, flow rate per hour, filtration rate in micron, operation pressure and operation temprature…
We will provide you most suitable model and dimension drawing.

2.Q: Can you offer video demonstrations illustrating the product's operation?
A: Absolutly, we can provide the working principle video, as well as the real photos.

3.Q: Do you facilitate live video consultations to inspect the factory in real-time?
A: :Surely. We can show our warehouse,
machining workshop, assembly workshop, inspection and packing workshop via video call. And we welcome you to visit our factory at site at any time.

4. Q: What are our advantages compared to others?
A: Ⅰ. Never shirk responsibility, to solve problems at the first time.
Ⅱ. The source of raw materials is well-known manufacturers,ensuring the quality of steel.
Ⅲ. Various material: Hastelloy C276, Ti alloy, Monel 400 alloy, Super duplex stainless steel 2507,duplex stainless steel 2205,SS904L, SS321, SS316H, SS316T, SS316L, SS304L, SS304.
Ⅳ.Complete machining equipment and strong processing capabilities, ensuring machining accuracy.

5.Q: What is the warranty period?
A: After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
