60 Micron Wedge Wire Basket Conical Shape Rolled And Welded

Certification
China Qingdao Lehler Filtering Technology Co., Ltd. certification
China Qingdao Lehler Filtering Technology Co., Ltd. certification
I'm Online Chat Now

60 Micron Wedge Wire Basket Conical Shape Rolled And Welded

60 Micron Wedge Wire Basket Conical Shape Rolled And Welded
60 Micron Wedge Wire Basket Conical Shape Rolled And Welded

Large Image :  60 Micron Wedge Wire Basket Conical Shape Rolled And Welded

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: WWC-525
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 7 pieces 7 work days

60 Micron Wedge Wire Basket Conical Shape Rolled And Welded

Description
Name: Wedge Wire Basket Conical Shape Shape: Conical Shape
Filtration Rate: 60 Micron Tec: Rolled And Welded
Profile Wire: 1.0*2.0mm Support Rod: 2.0*3.0mm
High Light:

60 Micron Wedge Wire Basket

,

Wedge Wire Basket Conical Shape

,

Welded Wedge Wire Basket

60 Micron Wedge Wire Basket Conical Shape Rolled And Welded



1. Wedge Wire Basket Conical Shape Introduction:



Wedge Wire Basket Conical Shape is made from 100% stainless steel. The stainless mesh is available in 300 or 400 micron, which based on experience among home brewers seems to be the sweet spot for containing the hops.

  • Minimum slot: 0.02mm(20um)
  • Perfect roundness
  • Very smooth wire surface

2. Specification of Lehler Wedge Wire Basket Conical Shape ?



Profile wire Support Rod
0.75*1.5mm 2*3mm
1.0*2.0mm 2*3mm
2.0*3.0mm 3*5mm
2.0*4.0mm 3*5mm
3.0*5.0mm 3*5mm





3. Application of Wedge Wire Basket Conical Shape?

  • Mineral and aggregate processing
  • Pulp and paper
  • Solid-liquid separation
  • Food and beverage

4. Advantages of Wedge Wire Basket Conical Shape ?



Non-clogging construction The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
Strong construction for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
Smooth Surface Filtration very good smooth filtration surface, which reduce mechanical wear.
High-precision slot opening Minimum Slot opening is 20 microns.

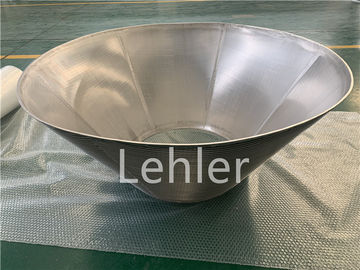

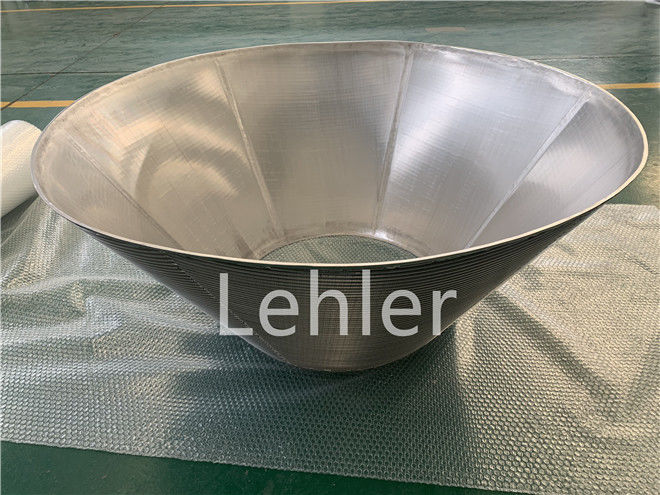

5. Details pictures of Lehler Conical Wedge Wire Basket:



60 Micron Wedge Wire Basket Conical Shape Rolled And Welded 0
