0.25mm Slot Welded Wedge Wire Screen Cylinder Wire Mesh Filter
0.25mm Slot Welded Wedge Wire Screen Cylinder Wire Mesh Filter 1. What is Wedge Wire Screen? The Welded Wedge Wire Screen is made up of support wire and filter wire. with the material of stainless steel 302,304,316,304L,316L. 2.Specification of Wedge Wire Screen? Minimum slot: 0.02mm(20um) Mimimum diameter: 16mm Maxmum Length: 6000mm Perfect roundness Very smooth wire surface Profile wire size: 0.75x1.5mm, 1.0x2.0mm, 1.5x2.5mm, 2.0x3.0mm, 2.0x4.0mm, 3.0x5.0mm... Support Rod
Brand Name:
Lehler
Model Number:
WWS-210
Minimum Order Quantity:
1 piece
Price:
Negotiable
Supply Ability:
1 piece 7 work days
Product Details
Highlight:
0.25mm Slot Welded Wedge Wire Screen
,Cylinder Welded Wedge Wire Screen
,Cylinder Wire Mesh Filter
Products Name:
Trommel Screens
Stainless Steel:
316L
Slot Opening:
0.25mm
Type:
From Inside To Outside
Application:
Recovery In Paper Industry
Profile Wire:
Circular
Product Description
Detailed Specifications & Features
0.25mm Slot Welded Wedge Wire Screen Cylinder Wire Mesh Filter
1. What is Wedge Wire Screen?
The Welded Wedge Wire Screen is made up of support wire and filter wire. with the material of stainless steel
302,304,316,304L,316L.
2.Specification of Wedge Wire Screen?
- Minimum slot: 0.02mm(20um)
- Mimimum diameter: 16mm
- Maxmum Length: 6000mm
- Perfect roundness
- Very smooth wire surface
- Profile wire size: 0.75x1.5mm, 1.0x2.0mm, 1.5x2.5mm, 2.0x3.0mm, 2.0x4.0mm, 3.0x5.0mm...
- Support Rod size: 2.0x3.0mm, 3.0x5.0mm, 5.0x8.0mm
| Profile wire | Support Rod |
| 0.75*1.5mm | 2*3mm |
| 1.0*2.0mm | 2*3mm |
| 2.0*3.0mm | 3*5mm |
| 2.0*4.0mm | 3*5mm |
| 3.0*5.0mm | 3*5mm |

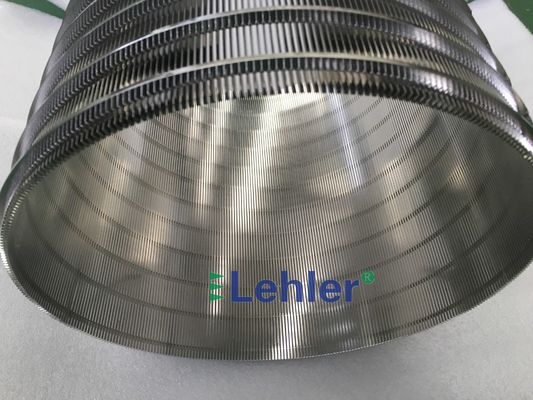

3.Details pictures of Wedge Wire Screen
4. Application of wedge wire screen?
- Coatings
- Chemical
- Petrochemical
- Pulp and paper
- Food and beverage
- Solid-liquid separation
- Waste water treatment
- Mineral and aggregate processing
5. Advantages of wedge wire screen?
- High-precision slot opening: Minimum Slot opening is 20 microns.
- Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
- Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
- Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
