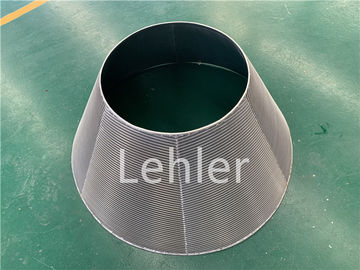

0.35mm Slot Trommel Rotary Drum Wedge Wire Screen

0.35mm Slot Trommel Rotary Drum Wedge Wire Screen
0.35mm Slot Trommel Rotary Drum Wedge Wire Screen

Large Image :  0.35mm Slot Trommel Rotary Drum Wedge Wire Screen

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: TRO-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 7 pieces 7 work days

0.35mm Slot Trommel Rotary Drum Wedge Wire Screen

Description
Name: Trommel Screens Slot Opening: 0.35mm
Material: SS304 Dimensions: 650*1800mm
Screen Wire: 2.0x3.0 Mm Support Rod: 3.0x5.0 Mm
High Light:

Rotary Drum Wedge Wire Screen

,

Trommel Wedge Wire Screen

,

0.35mm Slot Wedge Wire Screen





1. Lehler wedge wire basket is widely used for Pulp and paper Machinery.



Wedge Wire is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads.

The working surface is 100% smooth which eliminates blinding and pegging.

Wedge Wire is produced through the method of electric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees.

  • Minimum slot: 0.02mm(20um)
  • Perfect roundness
  • Very smooth wire surface

2. Specification of Wedge Wire Basket ?



Profile wire Support Rod
0.75*1.5mm 2*3mm
1.0*2.0mm 2*3mm
2.0*3.0mm 3*5mm
2.0*4.0mm 3*5mm
3.0*5.0mm 3*5mm

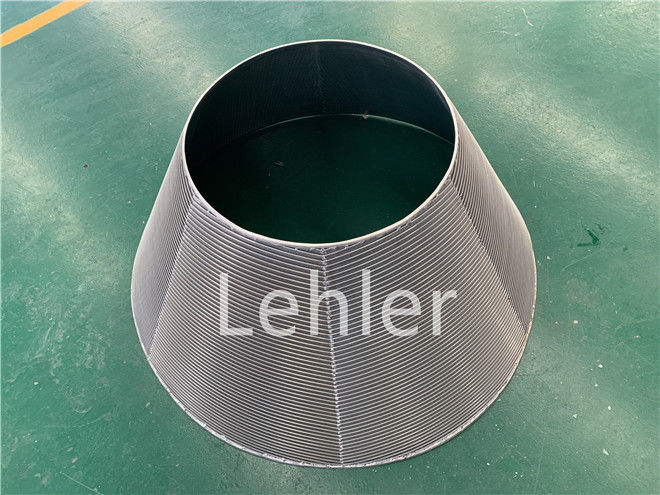

3.Details pictures of Wedge Wire Basket:





0.35mm Slot Trommel Rotary Drum Wedge Wire Screen 0

4. Application of Wedge Wire Basket?

  • Starch Industry
  • Sugar Industry
  • Mineral and aggregate processing
  • Pulp and paper
  • Solid-liquid separation
  • Food and beverage

5. Advantages of Wedge Wire Basket?

  1. Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  2. Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  3. Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  4. High-precision slot opening: Minimum Slot opening is 20 microns.
