250 Micron Ion Exchange 2205 Stainless Steel Filter Nozzles
1. What is Filter Nozzles? The filter nozzle is manufactured with stainless steel, which makes it resistant to high temperatures. The element structure guarantees an adequate flow distribution, both in pressure-working equipment, and gravity-working equipment. Lehler stainless steel filter nozzles is used for power plants, water treatment plants... 2.Specification of Lehler Filter Nozzles? Item Type No. Slot (mm) Dimentions m³/H at slot 0.2-0.25 D H L M 1 LH45-1-A 0.2-0.5 45
2205 Stainless Steel Filter Nozzles
,250 Micron Resin Sluicing Nozzles
,Resin Sluicing Ion Exchange Nozzles
1. What is Filter Nozzles?
The filter nozzle is manufactured with stainless steel, which makes it resistant to high temperatures.
The element structure guarantees an adequate flow distribution, both in pressure-working equipment, and gravity-working equipment.
Lehler stainless steel filter nozzles is used for power plants, water treatment plants...
2.Specification of Lehler Filter Nozzles?
| Item | Type No. | Slot (mm) | Dimentions | m³/H at slot 0.2-0.25 | |||
| D | H | L | M | ||||
| 1 | LH45-1-A | 0.2-0.5 | 45 | 25 | 80 | M25 | 280 |
| 2 | LH45-1-B | 0.2-0.5 | 45 | 35 | 90 | M25 | 390 |
| 3 | LH45-1-C | 0.2-0.5 | 45 | 45 | 100 | M25 | 500 |
| 4 | LH53-2-A | 0.2-0.5 | 53 | 35 | 90 | M25 | 450 |
| 5 | LH53-2-B | 0.2-0.5 | 53 | 45 | 100 | M25 | 570 |
| 6 | LH53-2-C | 0.2-0.5 | 53 | 50 | 110 | M32 | 700 |
| 7 | LH57-3-A | 0.2-0.5 | 57 | 35 | 100 | M32 | 530 |
| 8 | LH57-3-B | 0.2-0.5 | 57 | 45 | 110 | M32 | 600 |
| 9 | LH57-3-C | 0.2-0.5 | 57 | 55 | 120 | M32 | 800 |
| 10 | LH70-4-A | 0.2-0.5 | 70 | 45 | 110 | M32 | 800 |
| 11 | LH70-4-B | 0.2-0.5 | 70 | 55 | 120 | M32 | 1000 |

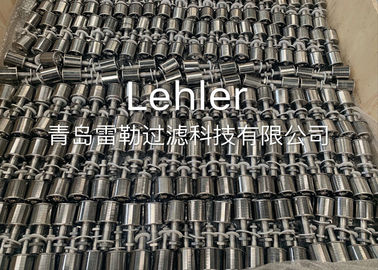

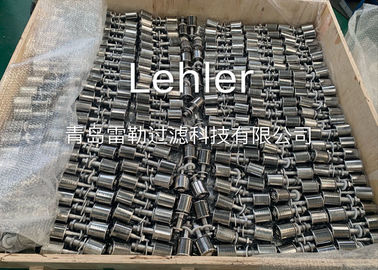

3.Details pictures of Lehler Lehler Filter Nozzles:
4. Material of Filter nozzles?
- SUS304
- SUS316L
- SUS904L
- Duplex 2205
- Duplex 2507
- Hastelloy
- All dimentions can be customerized.
- All accessaries can be sustomerized.
5. Advantages of Lehler Filter nozzles?
- Good roundness body: Ovality deviation is within 0.03mm.
- Uniform slots: slot opening deviation is within 0.015mm.
- No jam and Easy to cleaning by backwash.
- Long use time: Stainless steel material
- Larger slot opening area.
- Cost effectiveness.
