1060mm Drying Equipment SS316L Wedge Sieve Bend Screen

Certification
China Qingdao Lehler Filtering Technology Co., Ltd. certification
China Qingdao Lehler Filtering Technology Co., Ltd. certification
I'm Online Chat Now

1060mm Drying Equipment SS316L Wedge Sieve Bend Screen

1060mm Drying Equipment SS316L Wedge Sieve Bend Screen
1060mm Drying Equipment SS316L Wedge Sieve Bend Screen 1060mm Drying Equipment SS316L Wedge Sieve Bend Screen

Large Image :  1060mm Drying Equipment SS316L Wedge Sieve Bend Screen

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: LCD-1060
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 pieces 7 work days

1060mm Drying Equipment SS316L Wedge Sieve Bend Screen

Description
Application: Dewatering And Drying Equipment Name: CarterDAY Tri-bar Screen
Slot: 0.15mm Length: 1060mm
Width: 284mm MOC: SUS316L
High Light:

Wedge Sieve Bend Screen

,

SS316L Sieve Bend Screen

,

1060mm Sieve Bend Screen



1. What is Lehler Sieve bend Screen?

Lehler Sieve Bend Screens is a pre-filter to improve the performance of the clarifier by drastically reducing the load.

A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.



2.Specification of Lehler Sieve bend Screen?

Profile wire Support rod
0.76x1.5mm 2.0x3.0mm
1.5x2.5mm 2.0x3.0mm
2.0x3.0mm 3.0x5.0mm
2.0x4.0mm 3.0x5.0mm
2.5x3.0mm 3.0x5.0mm
3.0x5.0mm 3.0x5.0mm
3.0x6.0mm 5.0x8.0mm

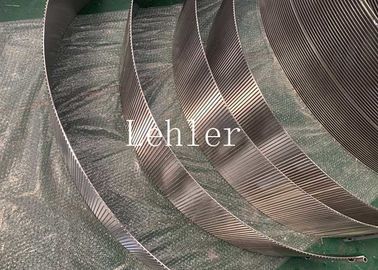

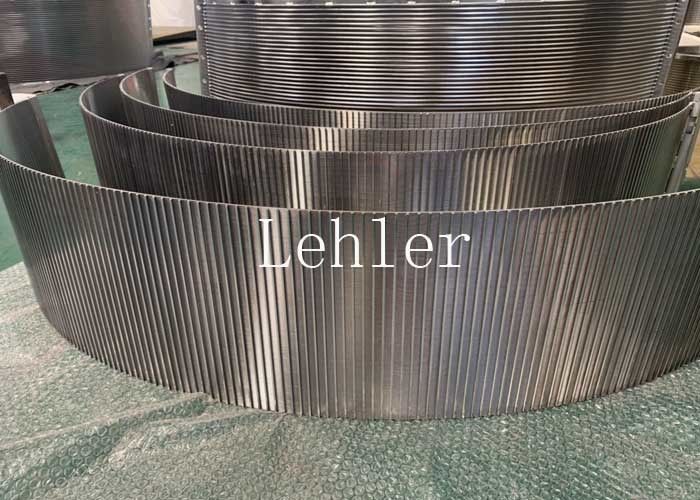

3.Details pictures of Sieve bend Screen:





1060mm Drying Equipment SS316L Wedge Sieve Bend Screen 0

4. Application of Sieve bend Screen?

  • Used in static sieves, our sieve screens can be manufactured in flat, curved, and cylindrical styles based on your Application.

  • Used for dewatering. Aggregate and mining applications include coal, potash, taconite, sand or gravel. Chemical applications included fertilizer. Food applications include potatoes, other vegetables, sugar, cornstarch, and cereal.

5. Advantages of Sieve bend Screen?

  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • High-precision slot opening: Minimum Slot opening is 20 microns.
