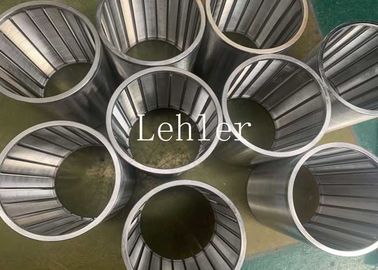

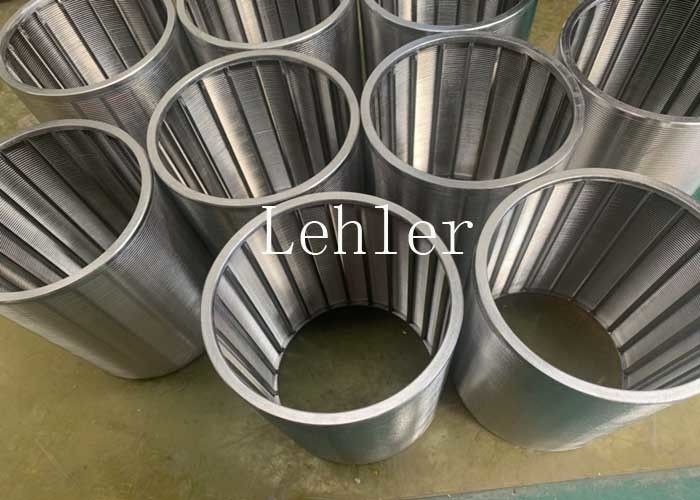

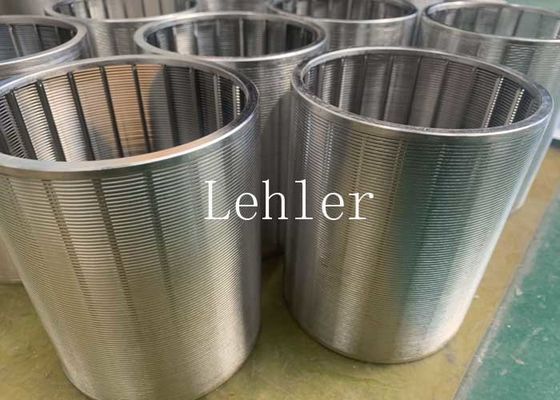

Ss304 Wedge Wire Screen Smooth Wire Surface​ High Precision Slot Size

Ss304 Wedge Wire Screen Smooth Wire Surface​ High Precision Slot Size
Ss304 Wedge Wire Screen Smooth Wire Surface​ High Precision Slot Size Ss304 Wedge Wire Screen Smooth Wire Surface​ High Precision Slot Size Ss304 Wedge Wire Screen Smooth Wire Surface​ High Precision Slot Size

Large Image :  Ss304 Wedge Wire Screen Smooth Wire Surface​ High Precision Slot Size

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: Bead Mill-171
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 pieces 7 work days

Ss304 Wedge Wire Screen Smooth Wire Surface​ High Precision Slot Size

Description
SLOT OPENING: 0.3mm HEIGHT: 300mm
MATERIAL: SS304 NAME: Bead Mill-171
Feature: Smooth Wire Surface Certification: ISO9001:2015
High Light:

bead mill front screen

,

vertical sand mill screen

Ss304 Wedge Wire Screen Smooth Wire Surface​ High Precision Slot Size



1. Wedge Wire Screen introduction?

Wedge Wire Cylinder is produced through the method of electric resistance welding, wires with special profiles are welded

to supporting wires at 90 degrees.

Wedge Wire is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads.

The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.

The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.

The working surface is 100% smooth which eliminates blinding and pegging.

Wedge wire screens are either flow-out-to-in OR flow-in-to-out.



2. Specification of Lehler wedge wire screen?

  • Minimum slot: 0.02mm(20um)
  • Mimimum diameter: 16mm
  • Maxmum Length: 6000mm
  • Perfect roundness
  • Very smooth wire surface​

3. Details pictures of Lehler wedge wire screen

==

4. Application of Beads Mill Screens?

Lehler basket mill screens serves for media mills, mixers and dispersion equipments for pait, coating and inks...industries.

  • chemical industries
  • coating and ink
  • paint
  • pulp & paper

5. Advantages of Beads Mill Screens?

  1. Non-clogging (blinding/pegging)
  2. High-precision slot sizes
  3. Long use life time.
  4. Low maintainess cost.
  5. Strong mechanical construction.
