Circular Type Bead Mill Screen 0.15mm Slot Opening High Flow Rate ISO9001

Large Image : Circular Type Bead Mill Screen 0.15mm Slot Opening High Flow Rate ISO9001

Product Details:

Place of Origin:	Qingdao, China
Brand Name:	Lehler
Certification:	ISO9001:2015
Model Number:	bms-1917

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	Plywood Case for Exporting Package
Delivery Time:	7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10 pieces 7 work days

Contact Now

Circular Type Bead Mill Screen 0.15mm Slot Opening High Flow Rate ISO9001

Description

DIMENSION:	DIA.121.5X73.5mm	APPLICATION:	Separation And Filtration
MATERIAL:	304	SLOT OPENING:	0.15mm
SUPPORT ROD:	Vertical	TYPE:	Circular
High Light:	bead mill front screen , vertical sand mill screen

Circular Type Bead Mill Screen 0.15mm Slot Opening High Flow Rate ISO9001

1. Vertical Sand Mill Filter Brief Introduction:

Lehler Vertical Sand Mill Filter is used for beads mill machines/ sand mill machines.

Fast & high flow rate.
Uniform & smooth slot.
Good roundness
Good abration resistance.
Minimum Zirconium beads is 0.1mm.

Nowadays, Lehler Vertical Sand Mill Filter serves for media mills, mixers and dispersion equipments for pait, coating and inks...

2. Specification of Vertical Sand Mill Filter?

Type	horizontal sand mill screen
Material	SS316L
Profile wire	1.0x2.0mm
Support rod	2.0x3.0mm
Outer DIA.	70MM
Height	84.25mm
Slot opening	0.15mm

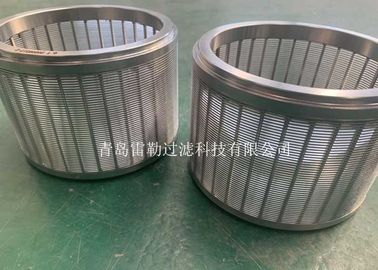

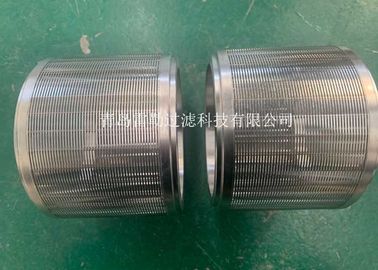

3. Details pictures of Vertical Sand Mill Filter.

4. Application of Vertical Sand Mill Filter?

chemical industries
coating and ink
paint & coating
pulp & paper

5. Advantages of Vertical Sand Mill Filter?

Non-clogging (blinding/pegging)
High-precision slot sizes
Long use life time.
Low maintainess cost.
Strong mechanical construction.

Tag:

bead mill front screen,

vertical sand mill screen,

basket mill head screen
