High Strength Wire Mesh Filter Element 100 Micron Slot For Cartridge Filter
Dimension 1000x80mm Wedge Wire SS Filter Elements for cartridge filter 1. What is Wedge Wire Elements? Lehler Wedge Wire Elements is used for automatic self-cleaning filters. The filter element slot opening is a long slit type, which is increase the opening area and flow rate. Filtration precision range is 20 to 1500 micron. The scraper is scraped in the direction of the gap and is suitable for conventional filtration requirements. The filtration surface is very smooth and
hydraulic filter element
,trislot wedge wire
Dimension 1000x80mm Wedge Wire SS Filter Elements for cartridge filter
1. What is Wedge Wire Elements?
Lehler Wedge Wire Elements is used for automatic self-cleaning filters.
The filter element slot opening is a long slit type, which is increase the opening area and flow rate.
Filtration precision range is 20 to 1500 micron.
The scraper is scraped in the direction of the gap and is suitable for conventional filtration requirements. The filtration surface is very smooth and flat, which reduce the abrasion of filter scraper blade.
2. Specification of Lehler Wedge Wire Elements?
| Profile wire | Support Rod |
| 0.75*1.5mm | 2*3mm |
| 1.0*2.0mm | 2*3mm |
| 2.0*3.0mm | 3*5mm |
| 2.0*4.0mm | 3*5mm |
| 3.0*5.0mm | 3*5mm |

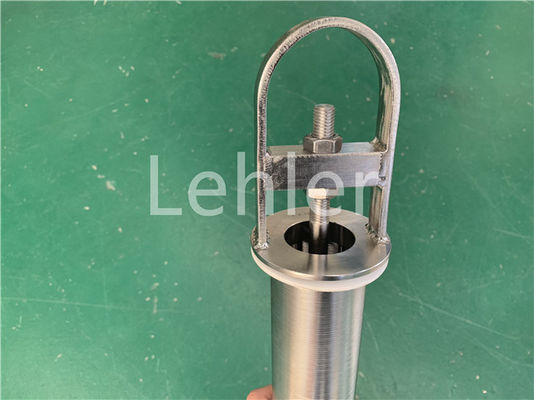

3. Details pictures of Lehler Wedge Wire Elements:
4. Application of Wedge Wire Elements?
- Waste water treatment
- Petrochemical
- Coatings
- Mineral and aggregate processing
- Pulp and paper
- Chemical
- Solid-liquid separation
- Food and beverage
5. Advantages of Wedge Wire Elements?
- Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
- Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
- Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
- High-precision slot opening: Minimum Slot opening is 20 microns.
