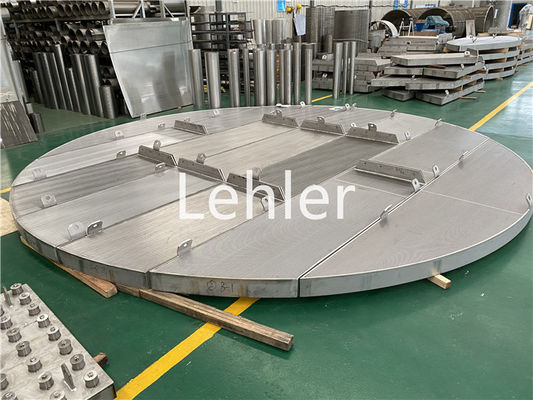

Reactor Internals wedge wire Catalyst Support Grid DIA 4000mm for Deacidification reactor

Reactor Internals wedge wire Catalyst Support Grid DIA 4000mm for Deacidification reactor
Reactor Internals wedge wire Catalyst Support Grid DIA 4000mm for Deacidification reactor Reactor Internals wedge wire Catalyst Support Grid DIA 4000mm for Deacidification reactor Reactor Internals wedge wire Catalyst Support Grid DIA 4000mm for Deacidification reactor

Large Image :  Reactor Internals wedge wire Catalyst Support Grid DIA 4000mm for Deacidification reactor

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: LSG-4000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1set /25 days

Reactor Internals wedge wire Catalyst Support Grid DIA 4000mm for Deacidification reactor

Description
Product: Catalyst Support Grid Application: Deacidification Reactor
Wedge Wire: 3x5mm Support Rod: 3x5 Mm
Material: SS316L Slot: 0.6mm
High Light:

distillation column internals

,

liquid distributor packed column

Reactor Internals Wedge Wire Catalyst Support Grid DIA 4000mm For Deacidification Reactor



1. Reactor Internals are made of wedge wire. Lehler wedge wire reactor internals are mainly used in petroleum and petrochemical, chemical fiber, nuclear power, pharmaceutical, paper-making, grain chemical industry, water treatment and other industrial fields as replacement of imported Reactor screen.

Lehler wedge wire reactor internals has high strength, stiffness and loading capacity. It can be made into rectangular, square, semicircular, fan-shaped and other forms of screen plate and screen cylinder.

Lehler wedge wire reactor internals are widely used in oil refining, aromatics, hydrogenation reactors, desulfurization reactors, alkylation reactors, collectors, various adsorbers, distributors and various raw material filters.

  • Distributor

  • Scale Trap

  • Center Pipe

  • Outlet collector

  • Catalyst support grid

2. Application of Lehler Support Grid?

  • Slovent recovery

  • Catalytic reforming

  • Ammonia converters

  • Nox removal systems

  • Isomerization processes

  • Styrene dehydrogenation

3.Details pictures of Catalyst Support Grid

Reactor Internals wedge wire Catalyst Support Grid DIA 4000mm for Deacidification reactor 0

Reactor Internals wedge wire Catalyst Support Grid DIA 4000mm for Deacidification reactor 1

​

4. Benifit you can get:

Non-clogging construction The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product
Strong construction for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
Smooth Surface Filtration very good smooth filtration surface, which reduce mechanical wear.
High-precision slot opening Minimum Slot opening is 20 microns.
