200 Mesh Slot Ss316l Wire Screen Filter For Inks Filtration Industry Iso9001
SS316L Wire Screen For Inks Filtration Industry 1. Stainless Steel Wedge Wire Screen: Wedge Wire is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads. The working surface is 100% smooth which eliminates blinding and pegging. Wedge Wire is produced through the method of electric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees. The distance between the surface profiles is
wedge wire panel
,wedge wire filter
SS316L Wire Screen For Inks Filtration Industry
1. Stainless Steel Wedge Wire Screen:
Wedge Wire is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads. The working surface is 100% smooth which eliminates blinding and pegging.
Wedge Wire is produced through the method of electric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees.
The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.Wedge wire screens are either flow-out-to-in OR flow-in-to-out.
2.Specification of Stainless Steel Wedge Wire Screen?
- Minimum slot: 0.02mm(20um)
- Mimimum diameter: 16mm
- Maxmum Length: 6000mm
- Perfect roundness
- Very smooth wire surface
| Profile wire | Support Rod |
| 0.75*1.5mm | 2*3mm |
| 1.0*2.0mm | 2*3mm |
| 2.0*3.0mm | 3*5mm |
| 2.0*4.0mm | 3*5mm |
| 3.0*5.0mm | 3*5mm |

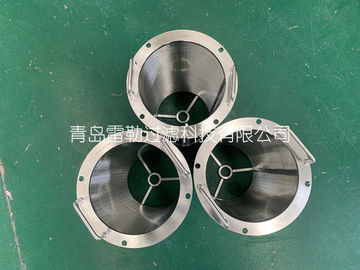

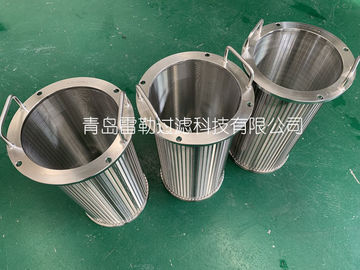

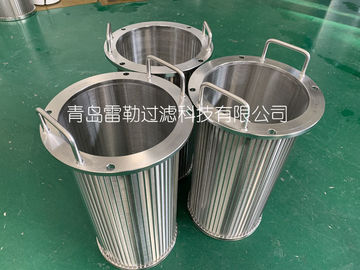

3.Details pictures of Stainless Steel Wedge Wire Screen:
