|Product:||Wedge Wire Screens||MOC:||SS316L|
|Profile Wire:||0.75x1.5mm||Support Rod:||2x3mm|
|Application:||Beverage Filtration||Slot Opening:||0.025mm|
wedge wire panel,
wedge wire filter

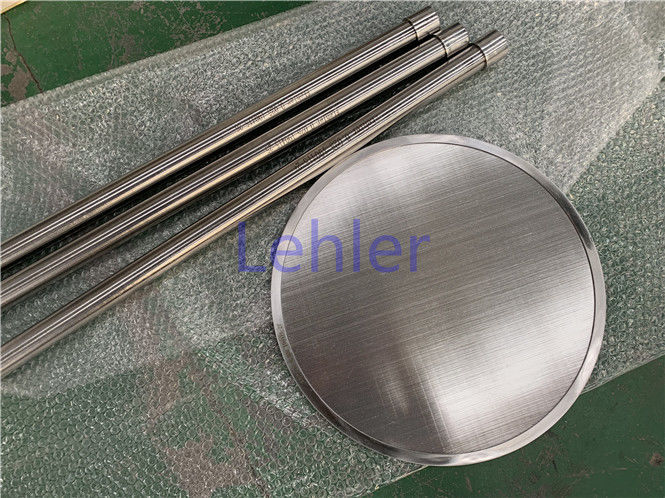

25micron Wedge Wire Screen For Beverage Filtration, Wedge Wire Plate
1. Stainless Steel Wedge Wire Screen:
Wedge Wire is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads. The working surface is 100% smooth which eliminates blinding and pegging.
Wedge Wire is produced through the method of electric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees.
The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.Wedge wire screens are either flow-out-to-in OR flow-in-to-out.
2.Specification of Stainles Steel Wedge Wire Screen?
|Profile wire||Support Rod|

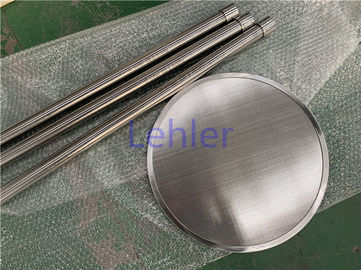

3.Details pictures of Stainless Steel Wedge Wire Screen:
4. Application of Stainless Steel Wedge Wire Screen?
5. Advantages of Stainless Steel Wedge Wire Screen?
