SS316L Stainless Steel Sieve Screen Wedge Wire Curved Screen For Food Processing Machinery

Certification
China Qingdao Lehler Filtering Technology Co., Ltd. certification
China Qingdao Lehler Filtering Technology Co., Ltd. certification
I'm Online Chat Now

SS316L Stainless Steel Sieve Screen Wedge Wire Curved Screen For Food Processing Machinery

SS316L Stainless Steel Sieve Screen Wedge Wire Curved Screen For Food Processing Machinery
SS316L Stainless Steel Sieve Screen Wedge Wire Curved Screen For Food Processing Machinery SS316L Stainless Steel Sieve Screen Wedge Wire Curved Screen For Food Processing Machinery SS316L Stainless Steel Sieve Screen Wedge Wire Curved Screen For Food Processing Machinery

Large Image :  SS316L Stainless Steel Sieve Screen Wedge Wire Curved Screen For Food Processing Machinery

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: SBS-1326
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 pieces 7 work days

SS316L Stainless Steel Sieve Screen Wedge Wire Curved Screen For Food Processing Machinery

Description
Application: Food Processing Machinery Material: SS316L
Frame: L-Shape Slot: 0.15mm
Width: 447mm Length: 1326mm
High Light:

stainless steel sieve screen

,

wedge wire sieve filters

Stainless Steel DSM screen, wedge wire curved screen for Food Processing Machinery



1. What is Lehler Sieve bend Screen?

Lehler Sieve Bend Screens is a pre-filter to improve the performance of the clarifier by drastically reducing the load.

A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.



2.Specification of Lehler Sieve bend Screen?

Profile wire Support rod
0.76x1.5mm 2.0x3.0mm
1.5x2.5mm 2.0x3.0mm
2.0x3.0mm 3.0x5.0mm
2.0x4.0mm 3.0x5.0mm
2.5x3.0mm 3.0x5.0mm
3.0x5.0mm 3.0x5.0mm
3.0x6.0mm 5.0x8.0mm

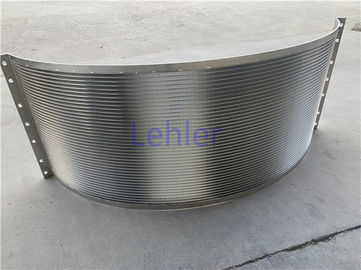

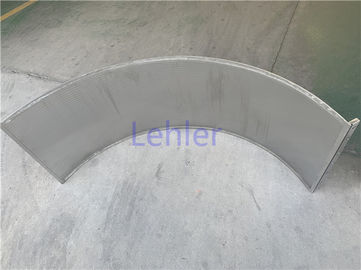

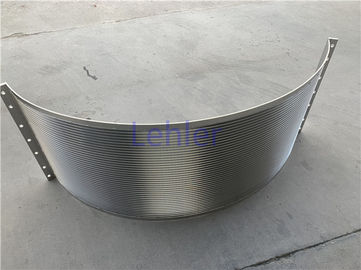

3.Details pictures of Sieve bend Screen:

SS316L Stainless Steel Sieve Screen Wedge Wire Curved Screen For Food Processing Machinery 0

SS316L Stainless Steel Sieve Screen Wedge Wire Curved Screen For Food Processing Machinery 1

SS316L Stainless Steel Sieve Screen Wedge Wire Curved Screen For Food Processing Machinery 2

4. Application of Sieve bend Screen?

  • Used in static sieves, our sieve screens can be manufactured in flat, curved, and cylindrical styles based on your Application.

  • Used for dewatering. Aggregate and mining applications include coal, potash, taconite, sand or gravel. Chemical applications included fertilizer. Food applications include potatoes, other vegetables, sugar, cornstarch, and cereal.

5. Advantages of Sieve bend Screen?

  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • High-precision slot opening: Minimum Slot opening is 20 microns.
