Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: WWS-110
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 piece 7 work days

Slot Tubes Slotted Screen Perfect Roundness For Waste Water Treatment Wws-110

Description
Products Name: Wire Screen Stainless Steel: 316L
Type: From Outside To Inside Application: Filtration And Separation
Support Rod: 2.0x3.0mm Profile Wire: 1.0x2.0mm
High Light:

stainless steel screen

,

profile wire screen

Slot Tubes / Wedge Wire Screen / V-Wire Screen for Filtration and Separation



1. Wedge Wire Screen Minimum slot is 20um.

Wedge Wire Screen is produced through the method of electric resistance welding,

wires with profile profiles are welded to support rod at 90 degrees.

The structure is FOTI(flow-out-to-in) & FITO(flow-in-to-out).

The distance between two profile wires is the slot opening, which is the filtration rate.



2.Specification of Wire Screen?

  • Minimum slot: 0.02mm(20um)
  • Mimimum diameter: 16mm
  • Maxmum Length: 6000mm
  • Perfect roundness
  • Very smooth wire surface
  • Profile wire size: 0.75x1.5mm, 1.0x2.0mm, 1.5x2.5mm, 2.0x3.0mm, 2.0x4.0mm, 3.0x5.0mm...
  • Support Rod size: 2.0x3.0mm, 3.0x5.0mm, 5.0x8.0mm
Profile wire Support Rod
0.75*1.5mm 2*3mm
1.0*2.0mm 2*3mm
2.0*3.0mm 3*5mm
2.0*4.0mm 3*5mm
3.0*5.0mm 3*5mm

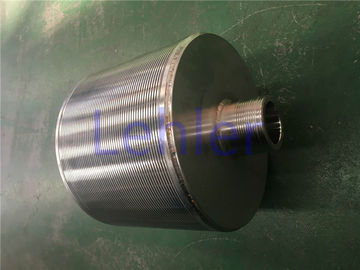

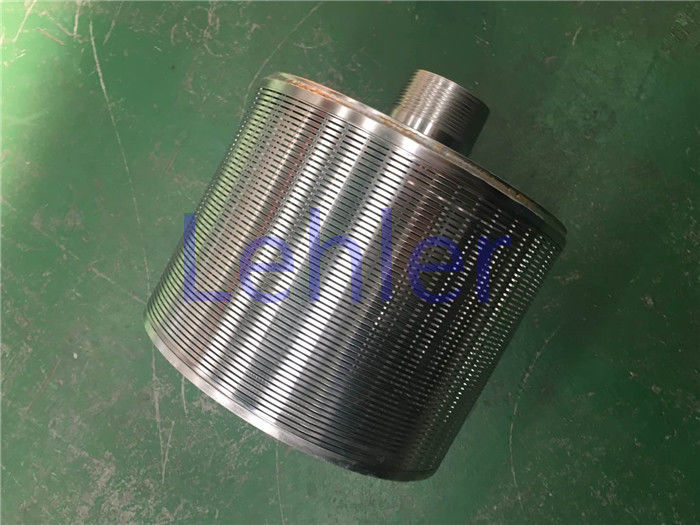

3.Details pictures of Wire Screen

Slot Tubes Slotted Screen Perfect Roundness For Waste Water Treatment Wws-110 0Slot Tubes Slotted Screen Perfect Roundness For Waste Water Treatment Wws-110 1

Slot Tubes Slotted Screen Perfect Roundness For Waste Water Treatment Wws-110 2

4. Application of wedge wire screen?

  • Coatings
  • Chemical
  • Petrochemical
  • Pulp and paper
  • Food and beverage
  • Solid-liquid separation
  • Waste water treatment
  • Mineral and aggregate processing

5. Advantages of wedge wire screen?

  • High-precision slot opening: Minimum Slot opening is 20 microns.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
