Length 300mm Wedge Wire Filter Elements Large Slot Opening Large Flow Rate

Length 300mm Wedge Wire Filter Elements Large Slot Opening Large Flow Rate
Length 300mm Wedge Wire Filter Elements Large Slot Opening Large Flow Rate Length 300mm Wedge Wire Filter Elements Large Slot Opening Large Flow Rate

Large Image :  Length 300mm Wedge Wire Filter Elements Large Slot Opening Large Flow Rate

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: WWF-160
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 pieces 7 work days

Length 300mm Wedge Wire Filter Elements Large Slot Opening Large Flow Rate

Description
Name: Wedge Wire Element Support Rod: 2.0x3.0 Mm
Stainless Steel: 304 Profile Wire: 1.0x2.0 Mm
DIA: 160 Mm Filtration Rate: 50 Micron
Length: 300 Mm Application: Scraping Filter Element
High Light:

trislot wedge wire

,

wire mesh filter element

Length 300mm Wedge Wire Scraping Filter Elements / Filter Elements



1. What is Wedge Wire Elements?

Lehler Wedge Wire Elements is used for automatic self-cleaning filters.

The filter element slot opening is a long slit type, which is increase the opening area and flow rate.
Filtration precision range is 20 to 1500 micron.
The scraper is scraped in the direction of the gap and is suitable for conventional filtration requirements. The filtration surface is very smooth and flat, which reduce the abrasion of filter scraper blade.



2.Specification of Lehler Wedge Wire Elements?

Profile wire Support Rod
0.75*1.5 mm 2*3 mm
1.0*2.0 mm 2*3 mm
2.0*3.0 mm 3*5 mm
2.0*4.0 mm 3*5 mm
3.0*5.0 mm 3*5 mm

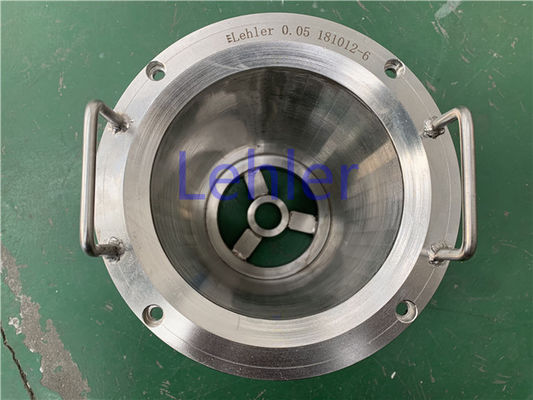

3.Details pictures of Lehler Wedge Wire Elements:

Length 300mm Wedge Wire Filter Elements Large Slot Opening Large Flow Rate 0

Length 300mm Wedge Wire Filter Elements Large Slot Opening Large Flow Rate 1

Length 300mm Wedge Wire Filter Elements Large Slot Opening Large Flow Rate 2

Length 300mm Wedge Wire Filter Elements Large Slot Opening Large Flow Rate 3

4. Application of Wedge Wire Elements?

  • Mineral and aggregate processing
  • Adhesive/sealant filtration
  • Waste water treatment
  • Solid-liquid separation
  • Food and beverage
  • Plastics extrusion
  • Pulp and paper
  • Petrochemical
  • Automotive
  • Chemical
  • Coatings

5. Advantages of Wedge Wire Elements?

  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong struction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • High-precision slot opening: Minimum Slot opening is 20 microns.
  • Large slot opening: large flow rate.
