Product Details:
|
| Product: | Resin Traps | Duplex: | 2205 |
|---|---|---|---|
| Length: | 520 Mm | DIA: | 89 Mm |
| Slot Opening: | 0.25 Mm | Connect: | Flanged |
| High Light: | resin trap strainer,wedge wire filter |
||
Duplex 2205 Wedge Wire Resin Protect the Water Distribution Line
1. Why we need resin trap?
When the resin is used for on-line water treatment, when the quality of the resin is poor (strength is insufficient),
the water pressure disturbance is large (especially high pressure disturbance), and the resin cylinder wall is damaged.
The resin will enter the whole water system, which will affect the normal operation of other equipment of the system.
Therefore, resin traps need to be installed. Resin trap is mainly to install a filter with much smaller aperture than resin in the water system pipeline near the outlet of equipment equipped with resin, such as ion exchanger, and has flushing function.
When the resin passes by, it can be intercepted and captured by the filter.
At the same time, the captured resin can be discharged out of the system by automatic flushing through the differential pressure between front and back.
Lehler wedge wire resin traps can can prevent loss of resins and keep the costly media in place.
It is not only to prevent the loss of costly medias, but also to avoid damaging downstream equipment.
Lehler design and manufacture resin traps according to the exact media particle size.
Lehler design and manufacture resin traps resin in a wide variety of materials and sizes.

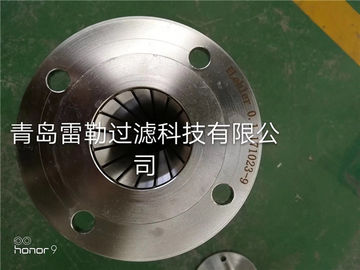

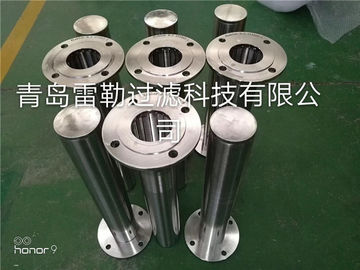

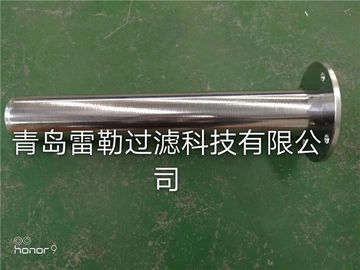

2.Details pictures of Resin traps:
3. Lehler resin trap Benifits?
| Lehler resin trap can prevent loss of resins and keep the costly media in place. |
| Lehler resin trap can prevent the damage to the pipe fittings. |
| Lehler resin trap can prevent the environmental damage. |
| Lehler resin trap can prevent cross contamination of resins. |
4. Advantages of resin traps?
