Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: LH52
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pieces 1 work day

LH52 Stainless Steel Filter Nozzles Larger Slot Opening Area Long Lifespan

Description
Name: Duplex Steel Filter Nozzles Duplex Steel: 2205
Dimension: 54x89mm Slot Opening: 200 Micron
Support Rod: 2.0x3.0mm Profile Wire: 1.0x2.0mm
High Light:

water filter nozzle

,

ion exchange nozzles

Duplex Steel 2205 Filter Nozzles / Water Treatment Nozzles / Sand Filter Nozzles



1. What is Filter Nozzles?

The filter nozzle is manufactured with stainless steel, which makes it resistant to high temperatures.

The element structure guarantees an adequate flow distribution, both in pressure-working equipment, and gravity-working equipment.

Lehler stainless steel filter nozzles is used for power plants, water treatment plants...



2.Specification of Lehler Filter Nozzles?

Item Type No. Slot (mm) Dimentions m³/H at slot 0.2-0.25
D H L M
1 LH45-1-A 0.2-0.5 45 25 80 M25 280
2 LH45-1-B 0.2-0.5 45 35 90 M25 390
3 LH45-1-C 0.2-0.5 45 45 100 M25 500
4 LH53-2-A 0.2-0.5 53 35 90 M25 450
5 LH53-2-B 0.2-0.5 53 45 100 M25 570
6 LH53-2-C 0.2-0.5 53 50 110 M32 700
7 LH57-3-A 0.2-0.5 57 35 100 M32 530
8 LH57-3-B 0.2-0.5 57 45 110 M32 600
9 LH57-3-C 0.2-0.5 57 55 120 M32 800
10 LH70-4-A 0.2-0.5 70 45 110 M32 800
11 LH70-4-B 0.2-0.5 70 55 120 M32 1000

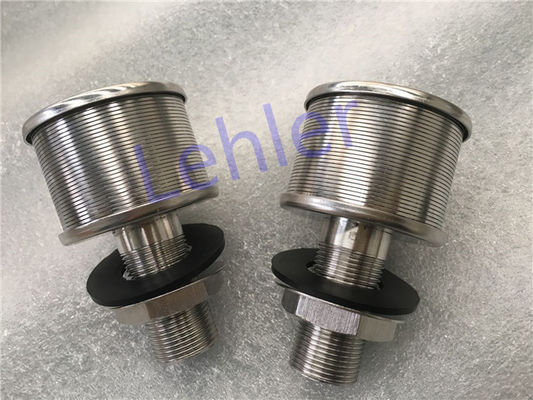

3.Details pictures of Lehler Lehler Filter Nozzles:

LH52 Stainless Steel Filter Nozzles Larger Slot Opening Area Long Lifespan 0

LH52 Stainless Steel Filter Nozzles Larger Slot Opening Area Long Lifespan 1LH52 Stainless Steel Filter Nozzles Larger Slot Opening Area Long Lifespan 2

4. Material of Filter nozzles?

  • SUS304
  • SUS316L
  • SUS904L
  • Duplex 2205
  • Duplex 2507
  • Hastelloy
  • All dimentions can be customerized.
  • All accessaries can be sustomerized.

5. Advantages of Lehler Filter nozzles?

  • Good roundness body: Ovality deviation is within 0.03mm.
  • Uniform slots: slot opening deviation is within 0.015mm.
  • No jam and Easy to cleaning by backwash.
  • Long use time: Stainless steel material
  • Larger slot opening area.
  • Cost effectiveness.
