Stainless Steel Filter Nozzles for DM Plants, Urban & Industrial Water Treatment Plants
1. What is Filter Nozzles?
The filter nozzle is manufactured with stainless steel, which makes it resistant to high temperatures.
The element structure guarantees an adequate flow distribution, both in pressure-working equipment, and gravity-working equipment.
Lehler stainless steel filter nozzles is used for power plants, water treatment plants...
| Item | Material | QTY. |
| Body | SS316,SS304, SS904L... | 1 |
| Rubber gasket | Rubber | 1 |
| Metal gasket | SS316,SS304, SS904L... | 1 |
| Nut | SS316,SS304, SS904L... | 1 |
2.Specification of Lehler Filter Nozzles?
| Item | Type No. | Slot (mm) | Dimentions | m³/H at slot 0.2-0.25 | |||
| D | H | L | M | ||||
| 1 | LH45-1-A | 0.2-0.5 | 45 | 25 | 80 | M25 | 280 |
| 2 | LH45-1-B | 0.2-0.5 | 45 | 35 | 90 | M25 | 390 |
| 3 | LH45-1-C | 0.2-0.5 | 45 | 45 | 100 | M25 | 500 |
| 4 | LH53-2-A | 0.2-0.5 | 53 | 35 | 90 | M25 | 450 |
| 5 | LH53-2-B | 0.2-0.5 | 53 | 45 | 100 | M25 | 570 |
| 6 | LH53-2-C | 0.2-0.5 | 53 | 50 | 110 | M32 | 700 |
| 7 | LH57-3-A | 0.2-0.5 | 57 | 35 | 100 | M32 | 530 |
| 8 | LH57-3-B | 0.2-0.5 | 57 | 45 | 110 | M32 | 600 |
| 9 | LH57-3-C | 0.2-0.5 | 57 | 55 | 120 | M32 | 800 |
| 10 | LH70-4-A | 0.2-0.5 | 70 | 45 | 110 | M32 | 800 |
| 11 | LH70-4-B | 0.2-0.5 | 70 | 55 | 120 | M32 | 1000 |

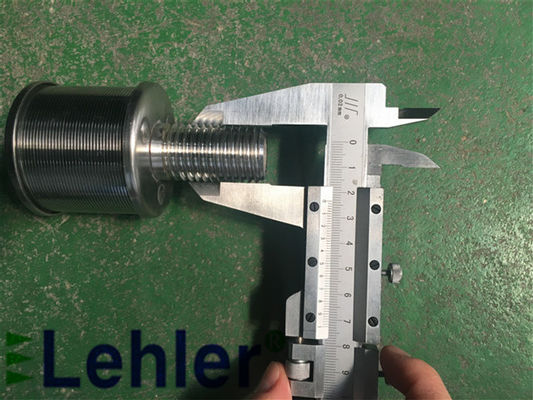

3.Details pictures of Lehler Lehler Filter Nozzles:
Packing:
4. Material of Filter nozzles?
- SUS304
- SUS316L
- SUS904L
- Hastelloy
- All dimentions can be customerized.
- All accessaries can be sustomerized.
5. Advantages of Lehler Filter nozzles?
- Good roundness body: Ovality deviation is within 0.03mm.
- Uniform slots: slot opening deviation is within 0.015mm.
- No jam and Easy to cleaning by backwash.
- Long use time: Stainless steel material
- Larger slot opening area.
- Cost effectiveness.
