For filtration, for separation and for dewatering
|Place of Origin:||Qingdao, China|
|Model Number:||wedge wire screen 320|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||Plywood Case for Exporting Package|
|Delivery Time:||7 work days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||10 pieces 7 work days|
|Product:||Wedge Wire Screens||Material:||SS304|
|Slot Opening:||0.8 Mm||Profile Wire:||2*4mm|
|Support Rod:||3*5mm||Application:||Separation And Filtration|
wedge wire panel,
wedge wire filter

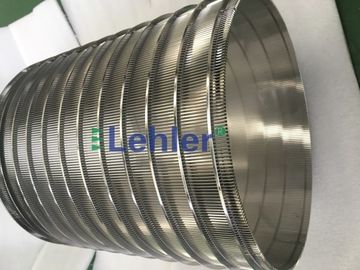

Stainless Steel 304 Wedge Wire Screen / Wedge Wire Cylinder ID.320X400mm
1. What is wedge wire screen?
Wedge Wire is produced through the method of electric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees.
Wedge Wire is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads. The working surface is 100% smooth which eliminates blinding and pegging.
The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.Wedge wire screens are either flow-out-to-in OR flow-in-to-out.
2.Specification of Lehler wedge wire screen?
|Profile wire||Support Rod|

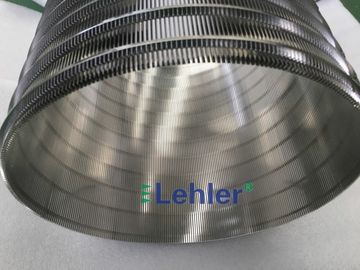

3.Details pictures of Lehler wedge wire screen
4. Application of wedge wire screen?
5. Advantages of wedge wire screen?
