Durable Stainless Steel Screen For Pharmaceutical Industry Slot 0.1mm

Certification
China Qingdao Lehler Filtering Technology Co., Ltd. certification
China Qingdao Lehler Filtering Technology Co., Ltd. certification
I'm Online Chat Now

Durable Stainless Steel Screen For Pharmaceutical Industry Slot 0.1mm

Durable Stainless Steel Screen For Pharmaceutical Industry Slot 0.1mm
Durable Stainless Steel Screen For Pharmaceutical Industry Slot 0.1mm Durable Stainless Steel Screen For Pharmaceutical Industry Slot 0.1mm

Large Image :  Durable Stainless Steel Screen For Pharmaceutical Industry Slot 0.1mm

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: WWS-110
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union

Durable Stainless Steel Screen For Pharmaceutical Industry Slot 0.1mm

Description
Product Name: Wedge Wire Screens Material: SS316L
Application: Pharmaceutical Industry Profile Wire: 1.0X2.0mm
Support Rod: 2.0*3.0mm Filtration Rate: 0.1mm
High Light:

wedge wire mesh

,

wedge wire filter

Wedge Wire Screens For Pharmaceutical Industry Slot 0.1mm



1. What is Stainless Steel 316L Screens?

Wedge Wire Screens are made from v-shaped wires(profile wire) and support rods.

The v-shaped wires and support rods is welded together by automatic resistance welding.

We call such v-shaped wires profile wire.

The distance between two profile wires is slot.

Minimum Slot opening is 20 microns.



2. Specification of Wedge Wire Screens?



Profile wire Support Rod
0.75*1.5mm 2*3mm
1.0*2.0mm 2*3mm
2.0*3.0mm 3*5mm
2.0*4.0mm 3*5mm
3.0*5.0mm 3*5mm

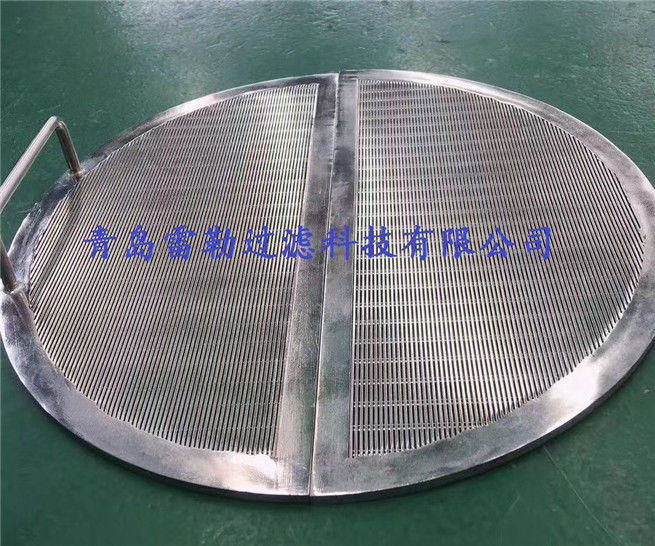

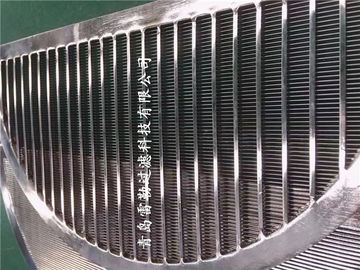

3.Details pictures of Wedge Wire Screens

Durable Stainless Steel Screen For Pharmaceutical Industry Slot 0.1mm 0

Durable Stainless Steel Screen For Pharmaceutical Industry Slot 0.1mm 1



4. Application of Wedge Wire Screens?

  • Used in static sieves, our sieve screens can be manufactured in flat, curved, and cylindrical styles based on your Application.

  • Used for dewatering. Aggregate and mining applications include coal, potash, taconite, sand or gravel. Chemical applications included fertilizer. Food applications include potatoes, other vegetables, sugar, cornstarch, and cereal.

5. Advantages of Wedge Wire Screens?

  1. Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  2. Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  3. Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  4. High-precision slot opening: Minimum Slot opening is 20 microns.
