|Name:||Wedge Wire Screens||Material:||SS316L|
|Slot Opening:||0.02 Mm||Profile Wire:||Circular|
|Support Rod:||Vertical||Application:||Separation And Filtration|
|Structure:||From Inside To Outside||Type:||Wedge Wire Slot Tube|
wedge wire mesh,
wedge wire filter
Stainless Steel Wedge Wire Slot Tube / Lehler Wedge Wire Screens
1. Lehler Wedge Wire Screens:
Wedge Wire is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads. The working surface is 100% smooth which eliminates blinding and pegging.
Wedge Wire is produced through the method of electric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees.
The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.Wedge wire screens are either flow-out-to-in OR flow-in-to-out.
2.Specification of Lehler wedge wire screen?
|Profile wire||Support Rod|

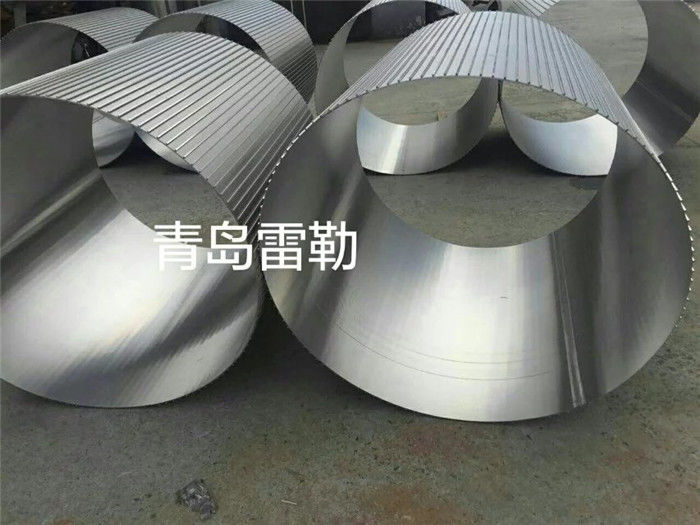

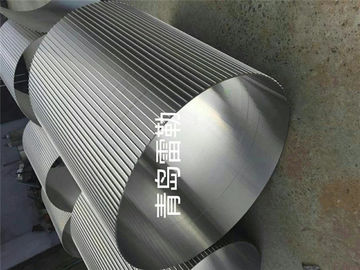

3.Details pictures of Lehler wedge wire screen
4. Application of wedge wire screen?
5. Advantages of wedge wire screen?
