Strainer V Wire Screen Baskets 125 Micron Slot Opening For Wastewater Treatment

Strainer V Wire Screen Baskets 125 Micron Slot Opening For Wastewater Treatment
Strainer V Wire Screen Baskets 125 Micron Slot Opening For Wastewater Treatment Strainer V Wire Screen Baskets 125 Micron Slot Opening For Wastewater Treatment

Large Image :  Strainer V Wire Screen Baskets 125 Micron Slot Opening For Wastewater Treatment

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: WWS-060
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 piece 7 work days

Strainer V Wire Screen Baskets 125 Micron Slot Opening For Wastewater Treatment

Description
Product Name: V Wire Screen Application: Wastewater Treatment
Dimension: 200x450mm Slot Opening: 125 Micron
Profile Wire: 12S Q25 Flow Direction: From Inside To Outside
High Light:

stainless steel screen

,

wire wrapped screen



Strainer V Wire Screen Baskets Wedge Wire Screen Filtration Rate 125 microns



1.  Wedge Wire Screen Brief Introduction:

Wedge Wire Screen Minimum slot is 20um.

The structure is FOTI(flow-out-to-in) & FITO(flow-in-to-out).

WedgeWire Screen is produced through the method of electric resistance welding,

wires with profile profiles are welded to support rod at 90 degrees.

The distance between two profile wires is the slot opening, which is the filtration rate.



2. Specification of Wedge Wire Screen?

  • Minimum slot: 0.02mm(20um)
  • Mimimum diameter: 16mm
  • Maxmum Length: 6000mm
  • Perfect roundness
  • Very smooth wire surface
  • Profile wire size: 0.75x1.5mm, 1.0x2.0mm, 1.5x2.5mm, 2.0x3.0mm, 2.0x4.0mm, 3.0x5.0mm...
  • Support Rod size: 2.0x3.0mm, 3.0x5.0mm, 5.0x8.0mm
Profile wire Support Rod
0.75*1.5mm 2*3mm
1.0*2.0mm 2*3mm
2.0*3.0mm 3*5mm
2.0*4.0mm 3*5mm
3.0*5.0mm 3*5mm

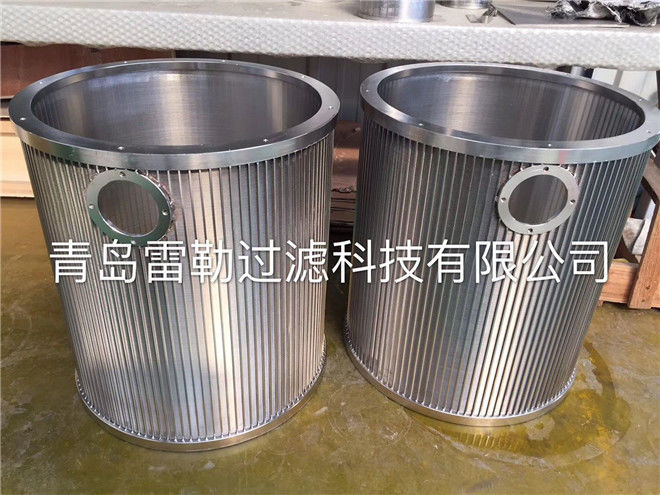

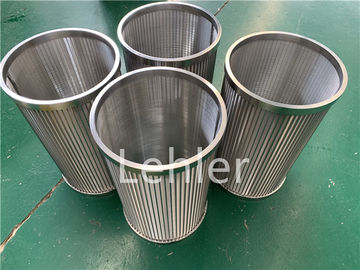

3. Details pictures of Wedge Wire Screen

Strainer V Wire Screen Baskets 125 Micron Slot Opening For Wastewater Treatment 0



Strainer V Wire Screen Baskets 125 Micron Slot Opening For Wastewater Treatment 1

4. Application of wedge wire screen?

  • Coatings
  • Chemical
  • Petrochemical
  • Pulp and paper
  • Food and beverage
  • Solid-liquid separation
  • Waste water treatment
  • Mineral and aggregate processing

5. Advantages of wedge wire screen?

  • High-precision slot opening: Minimum Slot opening is 20 microns.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
