Sea Water Filtration Filter Screen Replacement Wedge Wire Element 50 Micron

Certification
China Qingdao Lehler Filtering Technology Co., Ltd. certification
China Qingdao Lehler Filtering Technology Co., Ltd. certification
I'm Online Chat Now

Sea Water Filtration Filter Screen Replacement Wedge Wire Element 50 Micron

Sea Water Filtration Filter Screen Replacement Wedge Wire Element 50 Micron
Sea Water Filtration Filter Screen Replacement Wedge Wire Element 50 Micron Sea Water Filtration Filter Screen Replacement Wedge Wire Element 50 Micron

Large Image :  Sea Water Filtration Filter Screen Replacement Wedge Wire Element 50 Micron

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: WWS-203
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 piece 7 work days

Sea Water Filtration Filter Screen Replacement Wedge Wire Element 50 Micron

Description
Name: Wedge Wire Screen Material: SS316L
Type: From Inside To Outside Slot: 50micron
Filter Brand: AZUD Filter Application: Sea Water Filtration
High Light:

stainless steel screen

,

profile wire screen

50micron wedge Wire Screen, replacement wedge wire element for AZUD Filter



1. wedge Wire Screen Brief Introduction:

Wedge Wire Screen Minimum slot is 20um.

The structure is FOTI(flow-out-to-in) & FITO(flow-in-to-out).

Wedge Wire Screen is produced through the method of electric resistance welding,

wires with profile profiles are welded to support rod at 90 degrees.

The distance between two profile wires is the slot opening, which is the filtration rate.



2.Specification of Wedge Wire Screen?

  • Minimum slot: 0.02mm(20um)
  • Mimimum diameter: 16mm
  • Maxmum Length: 6000mm
  • Perfect roundness
  • Very smooth wire surface
  • Profile wire size: 0.75x1.5mm, 1.0x2.0mm, 1.5x2.5mm, 2.0x3.0mm, 2.0x4.0mm, 3.0x5.0mm...
  • Support Rod size: 2.0x3.0mm, 3.0x5.0mm, 5.0x8.0mm
Profile wire Support Rod
0.75*1.5mm 2*3mm
1.0*2.0mm 2*3mm
2.0*3.0mm 3*5mm
2.0*4.0mm 3*5mm
3.0*5.0mm 3*5mm

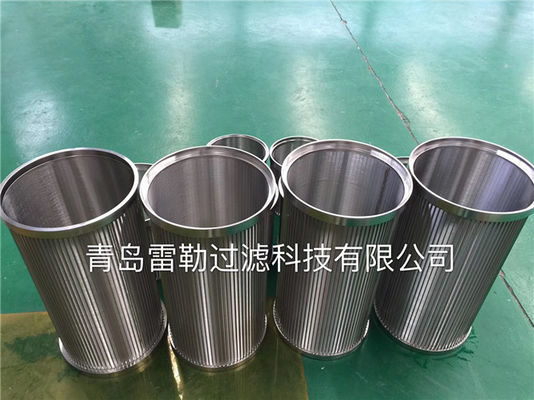

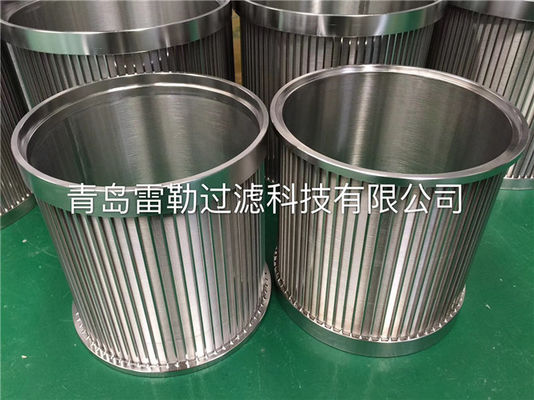

3.Details pictures of Wedge Wire Screen

Sea Water Filtration Filter Screen Replacement Wedge Wire Element 50 Micron 0

Sea Water Filtration Filter Screen Replacement Wedge Wire Element 50 Micron 1

4. Application of wedge wire screen?

  • Coatings
  • Chemical
  • Petrochemical
  • Pulp and paper
  • Food and beverage
  • Solid-liquid separation
  • Waste water treatment
  • Mineral and aggregate processing

5. Advantages of wedge wire screen?

  • High-precision slot opening: Minimum Slot opening is 20 microns.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
