150 Micron Sieve Bend Screen / Dewater Dryer Wedge Wire Screen SUS316L Material

150 Micron Sieve Bend Screen / Dewater Dryer Wedge Wire Screen SUS316L Material

    • 150 Micron Sieve Bend Screen / Dewater Dryer Wedge Wire Screen SUS316L Material
    • 150 Micron Sieve Bend Screen / Dewater Dryer Wedge Wire Screen SUS316L Material
    • 150 Micron Sieve Bend Screen / Dewater Dryer Wedge Wire Screen SUS316L Material
  • 150 Micron Sieve Bend Screen / Dewater Dryer Wedge Wire Screen SUS316L Material

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: Lehler
    Certification: ISO9001:2015
    Model Number: LCD-1060

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Packaging Details: Plywood Case for Exporting Package
    Delivery Time: 7 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10 pieces 7 work days
    Contact Now
    Detailed Product Description
    Name: Dewater Dryer Wedge Wire Screen Slot Opening: 150micron
    Dimension: 826mmx447mm Material: SUS316L
    Application: Dewatering And Drying Brand: Lehler
    High Light:

    stainless steel sieve screen

    ,

    wedge wire sieve filters

    SPINAWAY Series Wedge Wire Bend Screen, Dewater Dryer Wedge Wire Screen



    1. What is Lehler Sieve bend Screen?

    Lehler Sieve Bend Screens is a pre-filter to improve the performance of the clarifier by drastically reducing the load.

    A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.



    2.Specification of Lehler Sieve bend Screen?

    Profile wire Support rod
    0.76x1.5mm 2.0x3.0mm
    1.5x2.5mm 2.0x3.0mm
    2.0x3.0mm 3.0x5.0mm
    2.0x4.0mm 3.0x5.0mm
    2.5x3.0mm 3.0x5.0mm
    3.0x5.0mm 3.0x5.0mm
    3.0x6.0mm 5.0x8.0mm

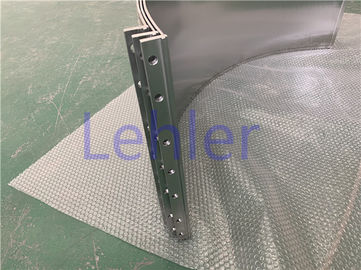

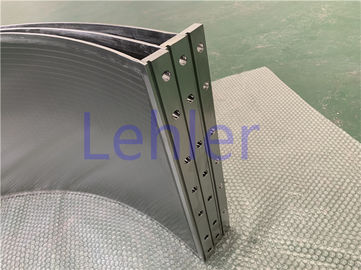

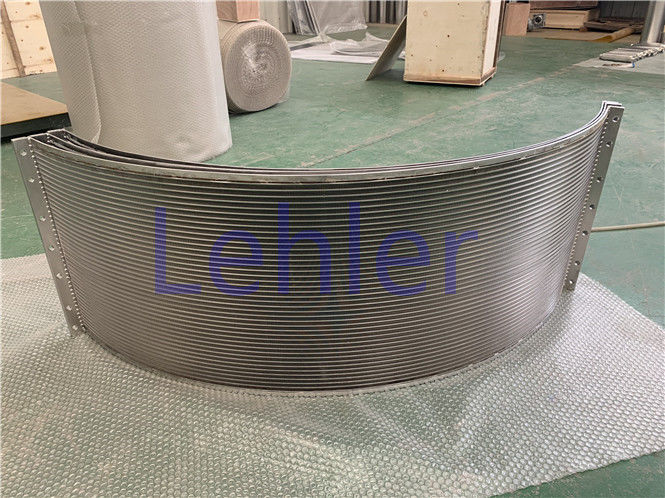

    3.Details pictures of Sieve bend Screen:

    150 Micron Sieve Bend Screen / Dewater Dryer Wedge Wire Screen SUS316L Material 0



    150 Micron Sieve Bend Screen / Dewater Dryer Wedge Wire Screen SUS316L Material 1

    4. Application of Sieve bend Screen?

    • Used in static sieves, our sieve screens can be manufactured in flat, curved, and cylindrical styles based on your Application.

    • Used for dewatering. Aggregate and mining applications include coal, potash, taconite, sand or gravel. Chemical applications included fertilizer. Food applications include potatoes, other vegetables, sugar, cornstarch, and cereal.

    5. Advantages of Sieve bend Screen?

    • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
    • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
    • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
    • High-precision slot opening: Minimum Slot opening is 20 microns.
