Ss Wire Slotted Screen Outside To Inside Type For Winery / Brewery Industry

Ss Wire Slotted Screen Outside To Inside Type For Winery / Brewery Industry
Ss Wire Slotted Screen Outside To Inside Type For Winery / Brewery Industry Ss Wire Slotted Screen Outside To Inside Type For Winery / Brewery Industry

Large Image :  Ss Wire Slotted Screen Outside To Inside Type For Winery / Brewery Industry

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: WWS-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 piece 7 work days

Ss Wire Slotted Screen Outside To Inside Type For Winery / Brewery Industry

Description
Name: Wedge Wire Filter Candles MOC: SS304
Type: From Outside To Inside Application: Winery And Brewery
Structure: From Outside To Inside DIA: 37.5 Mm
High Light:

stainless steel screen

,

profile wire screen

Stainless Steel Wedge Wire Filter Candles / Wire Screen for Winery and Brewery



1. Stainless Steel Wire Screen Introduction:

Wedge Wire Screen is produced through the method of electric resistance welding,

wires with profile profiles are welded to support rod at 90 degrees.

The distance between two profile wires is the slot opening, which is the filtration rate.

Minimum slot is  20um.

The structure is FOTI(flow-out-to-in) & FITO(flow-in-to-out).



2.Specification of Wire Screen?

  • Minimum slot: 0.02mm(20um)
  • Mimimum diameter: 16mm
  • Maxmum Length: 6000mm
  • Perfect roundness
  • Very smooth wire surface
  • Profile wire size: 0.75x1.5mm, 1.0x2.0mm, 1.5x2.5mm, 2.0x3.0mm, 2.0x4.0mm, 3.0x5.0mm...
  • Support Rod size: 2.0x3.0mm, 3.0x5.0mm, 5.0x8.0mm
Profile wire Support Rod
0.75*1.5mm 2*3mm
1.0*2.0mm 2*3mm
2.0*3.0mm 3*5mm
2.0*4.0mm 3*5mm
3.0*5.0mm 3*5mm

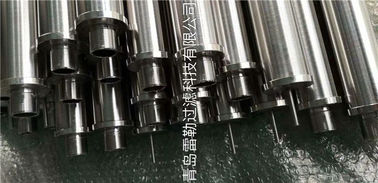

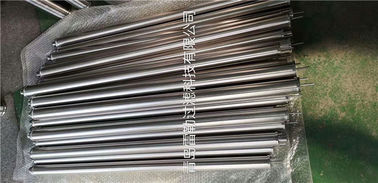

3.Details pictures of Wire Screen

Ss Wire Slotted Screen Outside To Inside Type For Winery / Brewery Industry 0Ss Wire Slotted Screen Outside To Inside Type For Winery / Brewery Industry 1

Ss Wire Slotted Screen Outside To Inside Type For Winery / Brewery Industry 2

4. Application of wedge wire screen?

  • Coatings
  • Chemical
  • Petrochemical
  • Pulp and paper
  • Food and beverage
  • Solid-liquid separation
  • Waste water treatment
  • Mineral and aggregate processing

5. Advantages of wedge wire screen?

  • High-precision slot opening: Minimum Slot opening is 20 microns.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
