1.97% V Wire Screen Ss304 Material For Cartridge Filter Iso9001 Certification

Wire Cartridges / Wedge Wire Element for Cartridge Filter

1. Wire Screen: is produced through the method of electric resistance welding,

wires with special profiles are welded to supporting wires at 90 degrees.

Wedge Wire is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads.

The working surface is 100% smooth which eliminates blinding and pegging.

The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.

The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.

Wedge wire screens are either flow-out-to-in OR flow-in-to-out.

2.Specification of Wire Screen?

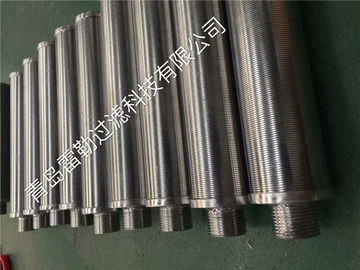

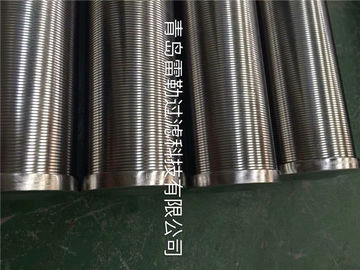

3.Details pictures of V-Wire Screen:

4. Application of Wire Screen?

V-Wire Screen is widely serviced for many industries for filtration and separation stage.

• environmental protection

• food & light industries

• pharmaceutical

• water treatment

• pulp & paper

• paint & inks

• petroleum

• chemical

5. Advantages of Wire Screen?​

• Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
• Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
• Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
• High-precision slot opening: Minimum Slot opening is 20 microns.
