Perfect Roundness Pressure Screen Basket Non - Clogging Construction

Perfect Roundness Pressure Screen Basket Non - Clogging Construction
Perfect Roundness Pressure Screen Basket Non - Clogging Construction Perfect Roundness Pressure Screen Basket Non - Clogging Construction Perfect Roundness Pressure Screen Basket Non - Clogging Construction

Large Image :  Perfect Roundness Pressure Screen Basket Non - Clogging Construction

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: VVB-KC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 7 pieces 7 work days

Perfect Roundness Pressure Screen Basket Non - Clogging Construction

Description
Product: Wedge Wire Basket Application: Last Stage
Height: 480 Mm Flange DIA: 348 Mm
Inner DIA: 297 Mm Slot: 0.15 Mm
Material: SS316L Support Ring: 8 Mm Thickness
High Light:

wire cylinder basket

,

water filter basket

SS316L Pulp and Paper Wedge Wire Basket / Wedge Wire Cylinders​



1. Pulp and Paper Wedge Wire Basket:

Lehler wedge wire basket is widely used for Pulp and paper industries.

Wedge Wire is produced through the method of electric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees.

Wedge Wire is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads.

The working surface is 100% smooth which eliminates blinding and pegging.

  • Minimum slot: 0.02mm(20um)
  • Perfect roundness
  • Very smooth wire surface

2.Specification of Wedge Wire Basket ?

Profile wire Support Rod
0.75*1.5mm 2*3mm
1.0*2.0mm 2*3mm
2.0*3.0mm 3*5mm
2.0*4.0mm 3*5mm
3.0*5.0mm 3*5mm

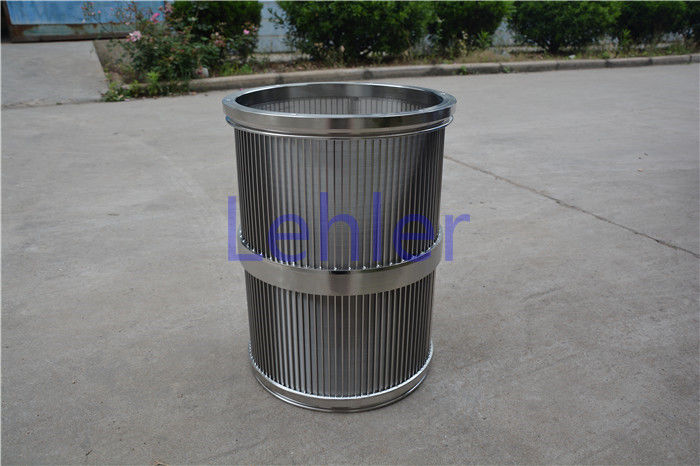

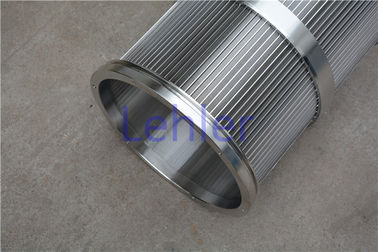

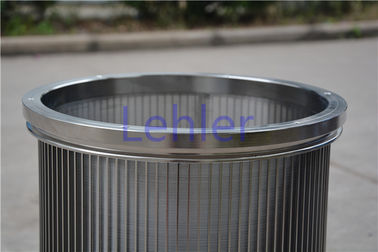

3.Details pictures of Wedge Wire Basket:

Perfect Roundness Pressure Screen Basket Non - Clogging Construction 0

Perfect Roundness Pressure Screen Basket Non - Clogging Construction 1

Perfect Roundness Pressure Screen Basket Non - Clogging Construction 2Perfect Roundness Pressure Screen Basket Non - Clogging Construction 3

4. Application of Wedge Wire Basket?

  • Starch Industry
  • Sugar Industry
  • Mineral and aggregate processing
  • Pulp and paper
  • Solid-liquid separation
  • Food and beverage

5. Advantages of Wedge Wire Basket?

  1. Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  2. Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  3. Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  4. High-precision slot opening: Minimum Slot opening is 20 microns.
