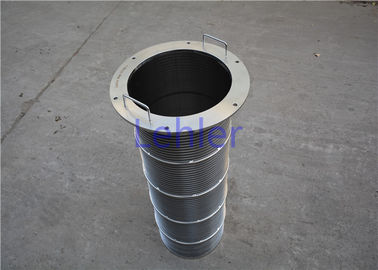

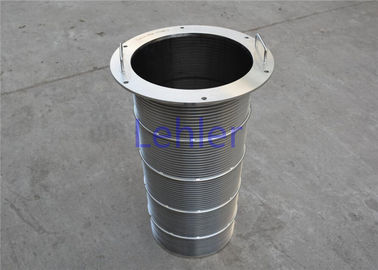

High Strength Wedge Wire Filter Elements High Pressure Flow Inside To Outside Type

High Strength Wedge Wire Filter Elements High Pressure Flow Inside To Outside Type
High Strength Wedge Wire Filter Elements High Pressure Flow Inside To Outside Type High Strength Wedge Wire Filter Elements High Pressure Flow Inside To Outside Type

Large Image :  High Strength Wedge Wire Filter Elements High Pressure Flow Inside To Outside Type

Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: WWF 230
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 pieces 7 work days

High Strength Wedge Wire Filter Elements High Pressure Flow Inside To Outside Type

Description
Type: Wedge Wire Element Structure: Flow Inside To Outside
MOC: 316L Slot: 0.075mm
Profile Wire: 1.0*2.0mm Support Rod: 2.0*3.0mm
High Light:

hydraulic filter element

,

trislot wedge wire

Stainless Steel 316L Wedge Wire Self-cleaning Filter Elements



1. What is Wedge Wire Elements?

Lehler Wedge Wire Elements is used for automatic self-cleaning filters.

The filter element slot opening is a long slit type, which is increase the opening area and flow rate.
Filtration precision range is 20 to 1500 micron.
The scraper is scraped in the direction of the gap and is suitable for conventional filtration requirements. The filtration surface is very smooth and flat, which reduce the abrasion of filter scraper blade.



2.Specification of Lehler Wedge Wire Elements?

Profile wire Support Rod
0.75*1.5mm 2*3mm
1.0*2.0mm 2*3mm
2.0*3.0mm 3*5mm
2.0*4.0mm 3*5mm
3.0*5.0mm 3*5mm



3.Details pictures of Lehler Wedge Wire Elements:

High Strength Wedge Wire Filter Elements High Pressure Flow Inside To Outside Type 0

High Strength Wedge Wire Filter Elements High Pressure Flow Inside To Outside Type 1

High Strength Wedge Wire Filter Elements High Pressure Flow Inside To Outside Type 2

High Strength Wedge Wire Filter Elements High Pressure Flow Inside To Outside Type 3

4. Application of Wedge Wire Elements?

  • Mineral and aggregate processing
  • Adhesive/sealant filtration
  • Waste water treatment
  • Solid-liquid separation
  • Food and beverage
  • Plastics extrusion
  • Pulp and paper
  • Petrochemical
  • Automotive
  • Chemical
  • Coatings

5. Advantages of Wedge Wire Elements?

  • Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
  • Strong struction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
  • Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
  • High-precision slot opening: Minimum Slot opening is 20 microns.
  • Large slot opening: large flow rate.
