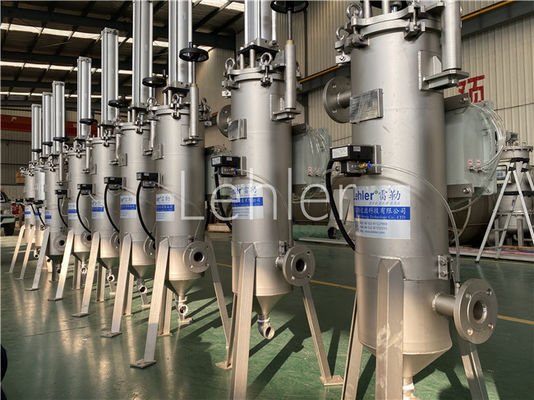

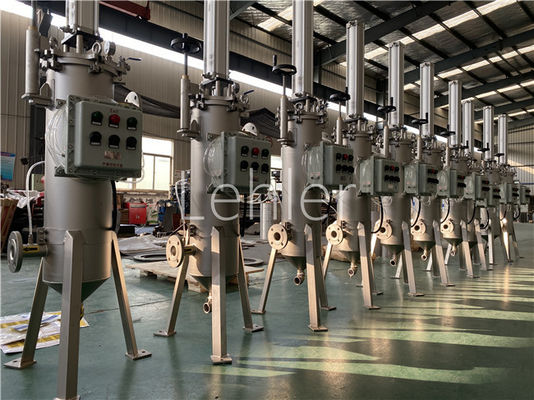

DN50 Pneumatic Self Cleaning Screen Filter For Inks

DN50 Pneumatic Self Cleaning Screen Filter For Inks

  • DN50 Pneumatic Self Cleaning Screen Filter For Inks
  • DN50 Pneumatic Self Cleaning Screen Filter For Inks
DN50 Pneumatic Self Cleaning Screen Filter For Inks
Product Details:
Place of Origin: Qingdao, China
Brand Name: Lehler
Certification: ISO9001:2015
Model Number: LFA-273
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Case for Exporting Package
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 set 10 work days
Contact Now
Detailed Product Description
Type: Pneumatic Scraping Inlet And Outlet: DN50
Filter Element: Wedge Wire Power Box: EX-proof
Filtration Rate: 0.20mm Application: Inks And Coatings
High Light:

DN50 Self Cleaning Screen Filter

,

0.20mm Self Cleaning Screen Filter

,

Sandblasting Self Cleaning Filters

Stainless Steel Pneumatic Self Cleaning Screen Filter For Inks Filtration



Pneumatic scraping self-cleaning filter blends modern technology with simplicity to provide a versatile method of filtering your process fluids.



Working principle: liquid enters the filter body from inlet and flows through the filter element from inside to outside. Impurity is collected on the internal surface of the wedge wire element. The aircyliner drives scraper blade up and down to remove the impurity contiously. Cleaning takes place without interruption to flow by the rotation is deposited into the bottom of the filter body from where it can be periodically discharged automatically via the drain outlet.



Main technical specification:

Model: LFA-D273

Filtration surface area: 0.43㎡

Filter element: wedge wire (v-slot screen)

Filtration rate: 0.15mm

Filter housing: SS316L

Filter element: SS316L

Scraper: PTFE

Inlet / outlet: DN50

Drain outlet: DN40

Pneumatic cylinder: AirTAC

Design pressure: 1.0Mpa

Design temp. 60-100℃

Power control box: EX-proof

Blowdown valve: Pneumatic ball valve

Filter surface treatment: Sand-blasting



Model Filtration area Outlet Inlet

Drain outlet

LFA-D219 0.2㎡ DN40 DN40 DN32
LFA-D273 0.43㎡ DN50 DN40 DN40
LFA-D450 0.82㎡ DN150 DN150 DN50



DN50 Pneumatic Self Cleaning Screen Filter For Inks 0



Application liquid:
wax, kerosene, monomer, polymer, water, citric acid, fermentation liquid, protein, soap, sorbitol, wet end additive, binder, Inks and Coatings, resin, rubber, ethanol, chocolate, candy, cooking oil, high temperature oil, juice, coolant, diesel oil...

Application industry:
Water treatment, Paper making, Petrochemical, Sanitary, Pharmaceutical, Inks and Coatings, Grease, Foof and beverage...
